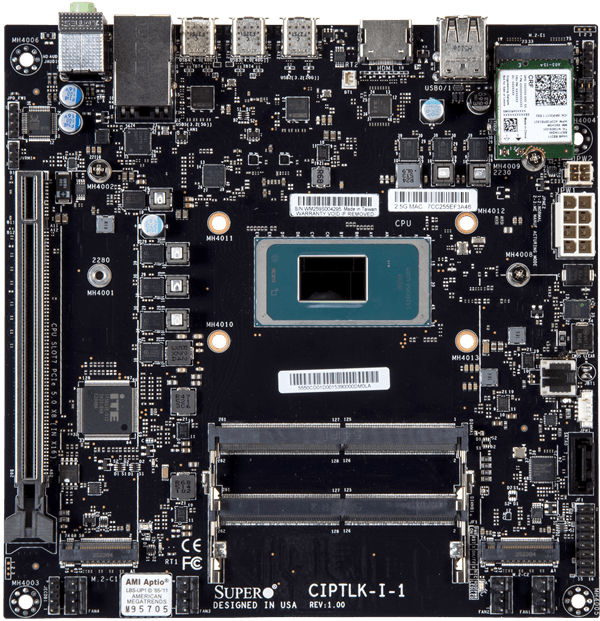

CIPTLK-I-1

CIPTLK-I-1
Client AI PC

Key Features


  1. Intel® Core™ Ultra 5 336H (Series 3) Processors, 12 cores, TDP up to 65W
  2. Supports up to 128 GB of non-ECC DDR5 SODIMM/Clocked SODIMM (CSODIMM) memory with speeds of up to 7200 MT/s in two memory slots (1DPC)
  3. 1 PCIe 5.0 x8 Slot (in x16)
  4. M.2 Interface: 1 PCIe 5.0 x4 (M.2 Form Factor: 2280/22110); 1 PCIe 4.0 x4(M.2 Form Factor: 2280), RAID 0 &1; M.2 Key: M-Key
  5. One 2.5 Gbit LAN port (i226-LM, with support of Intel vPro)
  6. 2 Thunderbolt 4 ports on the rear I/O (40 Gb, Type-C, USB3 and USB4, supporting DP 2.1 Alt mode)
  7. Support CNVi WiFi 7 and Bluetooth 6 via an M.2 E-Key module
...
...
Specifications Resources
Specifications
Product SKUs
MBD-CIPTLK-I-1
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17cm x 17cm)
Processor
CPU
  • Single FCBGA-2540
  • Intel® Core™ Ultra 5 Processor 336H
Core Count
  • P-cores: Up to 4C/4T; Up to 16MB Cache
  • E-cores: Up to 8C/8T; Up to 8MB Cache
Note
  • Supports up to 65W TDP CPUs
System Memory
Memory
  • Slot Count: 2 DIMM Slots
  • Max Memory (1DPC): Up to 128GB 7200MT/s non-ECC DDR5 SO-DIMM
  • CSODIMM (clocked SODIMM) support up to 7200MT/s (with Core™ Ultra 9/7/5)
DIMM Sizes
  • SO-DIMM:8GB, 16GB, 24GB, 32GB, 48GB, 64GB
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • 1 SATA (6Gbps) via Asmedia ASM1061
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port(s) (Intel® I226LM Ethernet Controller)
USB
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 Thunderbolt™ 4 Type-C port(s) (Rear)
  • 1 USB 3.2 Gen 2x2 Type-C port(s) (Rear)
  • 1 USB 3.2 Gen 1 Type-A port(s) (Rear)
Video
  • 1 HDMI 2.1 (8K@60MHz) port(s)
  • 2 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4) port(s)
Audio
  • ALC 888S HD Audio
TPM
  • 1 TPM 2.0 onboard
Others
  • 1 Wi-Fi 7 + Bluetooth® 6 via M.2 E-key module with CNVi port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • 1 PCIe 5.0 x8 (in x16) slot
M2
  • 1 M.2 PCIe 4.0 x4 slot (M-key 2280)
  • 1 M.2 PCIe 5.0 x4 slot (M-key 2280/22110)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • SMBIOS 3.0 or later
  • BIOS rescue hot keys
  • Riser card auto-detection support
PC Health Monitoring
Voltage
  • +12V,+3.3V,+5V,3.3V standby,VBAT,Vcore,VDD2 (VDIMM)
Temperature
  • CPU temperature
  • Peripheral temperature
  • System temperature
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • 4 fans with tachometer monitoring
  • Fan speed control
  • Overheat LED indication
Other Features
  • ATX power connector
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
  • WOL
Operating Environment
RoHS
  • RoHS Compliant
Resources
Parts List

CIPTLK-I-1 Coming Soon
