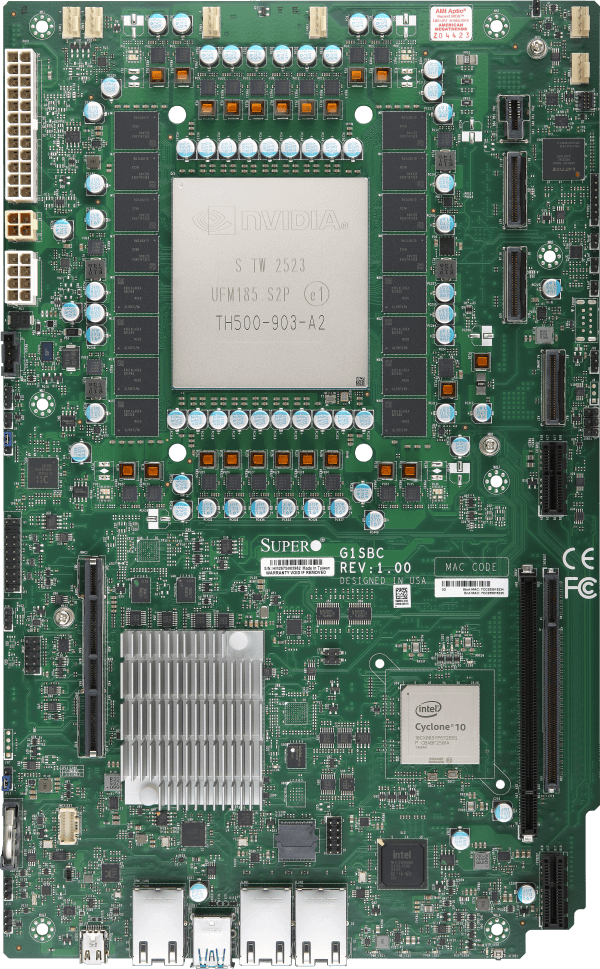

G1SBC

C1 IoT

Key Features

Single processor(s) NVIDIA Grace™ CPU C1
240GB on-board memory with ECC LPDDR5X
Intel Cyclone 10 GX FPGA
Dual LAN with 1GbE with Intel® I350
3x PCIe 5.0 x16
2x NVMe Gen.5 M.2
DC-SCM support

...

...

Optimized Servers

ARS-111L-FR

Specifications

Product SKUs
MBD-G1SBC

Physical Stats
Form Factor	Proprietary
Dimension	13.05" x 8.15"

Processor
CPU	NVIDIA Grace™ CPU C1
Core Count	Up to 72C
Note	Supports up to 250W TDP CPUs

System Memory
Memory	Slot Count: Onboard Memory Max Memory: Up to 240GB ECC LPDDR5X

On-Board Devices
Chipset	Intel Cyclone 10 GX FPGA
IPMI	ASPEED AST2600 BMC
Network Controller	Dual LAN with 1GbE with Intel® I350

Input / Output
LAN	2 RJ45 1 GbE LAN port(s) 1 RJ45 Dedicated IPMI LAN port(s)
USB	2 USB 3.2 Gen1x1 port(s)
Video	1 mini-DP port(s)
TPM	1 TPM header

Expansion Slots
PCI-Express (PCIe) Configuration	3 PCIe 5.0 x16 slots
M2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110; M.2 support requires an optional M.2 adapter card)

System BIOS
BIOS Type	AMI 64MB SPI Flash ROM with UEFI

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMI Utilities

PC Health Monitoring
Voltage	+1.8V,+12V,+12V Standby,+3.3V,+3.3V standby,+5V,+5V standby,1.8V standby,VBAT
LED	LAN activity LED LAN1 activity LED LAN2 activity LED Power LED UID/remote UID LED
Temperature	CPU temperature CPU thermal trip support I2C temperature sensing logic NVMe temperature Thermal control for 6 fan connectors
FAN	6x 4-pin fan headers (up to 6 fans)
Other Features	8-pin 12v DC power connector ATX power connector Chassis intrusion header DC-SCM support RoT
