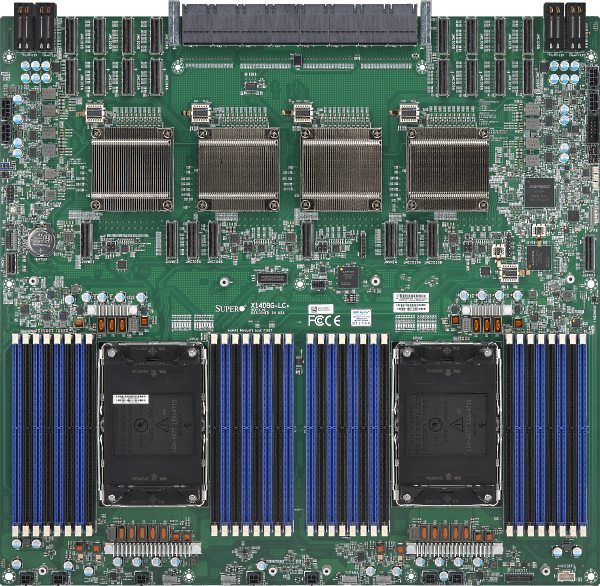

X14DBG-LC+

X14DBG-LC+
X14 GPU

Key Features


  1. M.2 Interface: 2 PCIe5.0 x4M.2 Form Factor: 2280, 22110M.2 Key: M-Key
  2. 4 MCIO Connectors PCIe 5.0 x8 (NVMe)
  3. 4 MCIO Connectors PCIe 5.0 x16 (Bluefield)
  4. 1 MCIO Connectors PCIe 5.0 x4 (NVMe M.2 RAID controller)
  5. 16 MCIO Connectors PCIe 5.0 x16 (Networking, GPU direct)
  6. 8 EXAMAX PCIe 5.0 x16 (GPU)
  7. Networking options provided via Intel X710 via. AOM-GP805-IO
  8. Support Nvidia HGX Blackwell B200
  9. Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
  10. Support DDR5 RDIMM 5200MT/s in 32 DIMM slots (2DPC)
  11. Support DDR5 MRDIMM 8000MT/s in 16 DIMM slots (1DPC)
...
...

Optimized Servers


SYS-422GS-NBRT-LCC SYS-822GS-NBRT
Specifications Resources
Specifications
Product SKUs
MBD-X14DBG-LC+
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 17" x 16.16" (43.2cm x 41cm)
Processor
CPU
System Memory
Memory Capacity
  • 32 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • N/A
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • N/A
Input / Output
LAN
  • 2 SFP+
  • 1 LAN
Expansion Slots
PCIe
  • N/A
M.2
  • M.2 Interface: 2 PCIe 5.0
  • Form Factor: 2280/22110
  • Key: M-key
System BIOS
BIOS Type
  • AMI 64MB UEFI
  • AMI 64MB UEFI
  • AMI 64MB UEFI
BIOS Features
  • UEFI 2.9
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +5V standby, ACPI power management, System temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Vcore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI), Fan speed control
LED
  • BMC/IPMI Heartbeat LED
Other Features
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support
Publish Status
0
  • Published
