X14QBH+

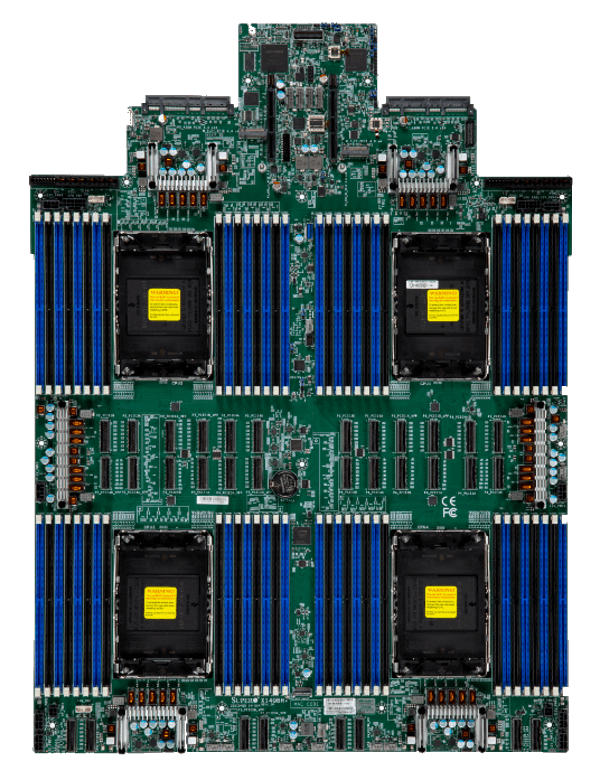

X14 MP Server Board

Key Features

AST2600 BMC, TPM 2.0 (HW Root of Trust)
Intel® Xeon® 6700/6500 series processors with P-cores, Quad Socket LGA-4710 (Socket E2) supported, CPU 150W to 350W TDP)
Up to 16TB ECC RDIMM, DDR5-6400MT/s in 64 DIMM slots
1 x DP port, 1 x COM Port, 2 x USB 3.0 Ports, and 1 x BMC Gbe LAN Port via AOM-218H2-IO - I/O board
32 x PCIe 5.0 x8 via MCIO COnnectors
2 x PCIe 5.0 x16 via AIOM Connectors

...

...

Optimized Servers

SYS-242H-NR SYS-242B-NR SYS-442B-NR

Specifications

Product SKUs
MBD-X14QBH+

Physical Stats
Form Factor	Proprietary
Dimension	22.87" x 17" (58.09cm x 43.18cm)

Processor
CPU	Intel® Xeon® 6500P/6700P-Series Processors Quad Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Core	Up to 86 cores

System Memory
Memory Capacity	64 DIMM slots Up to 16TB ECC Registered RDIMM, DDR5-6400MT/s; Up to 16TB 3DS ECC Registered RDIMM, DDR5-6400MT/s Intel® Xeon® 6500/6700-series processors with P-cores (4-Way) supports DDR5 - RDIMM and DDR5 - RDIMM3DS ONLY. MRDIMM are NOT Supported.
Memory Type	6400 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 6400 MT/s
DIMM Sizes	64GB, 96GB, 128GB, 256GB RDIMM: 64GB, 96GB, 128GB, 256GB RDIMM: 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
IPMI	ASPEED AST2600 BMC
Network Controllers	N/A

Expansion Slots
PCIe	2 PCIe 5.0 x16 AIOM, 32 PCIe 5.0 x8 MCIO connector
M.2	M.2 Interface: 8 PCIe 4.0 Form Factor: 2280/22110 Key: M-key

System BIOS
BIOS Type	AMI 64MB UEFI AMI 64MB UEFI AMI 64MB UEFI
BIOS Features	UEFI 2.9

Management
Software	SuperCloud Composer®, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	System temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Vcore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI), Fan speed control
FAN	12x 4-pin x 8, 6-pin x 4 fan headers (up to 12 fans)

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Publish Status
0	Published

Resources

Servers (Optimized for X14QBH+)

SYS-242H-NR

SYS-242B-NR

SYS-442B-NR

...

Component Options

Software

Documentation

Parts List

X14QBH+ (For SuperServer Only) New
