H14SSF (SuperServer 限SuperServer)

H14SSF

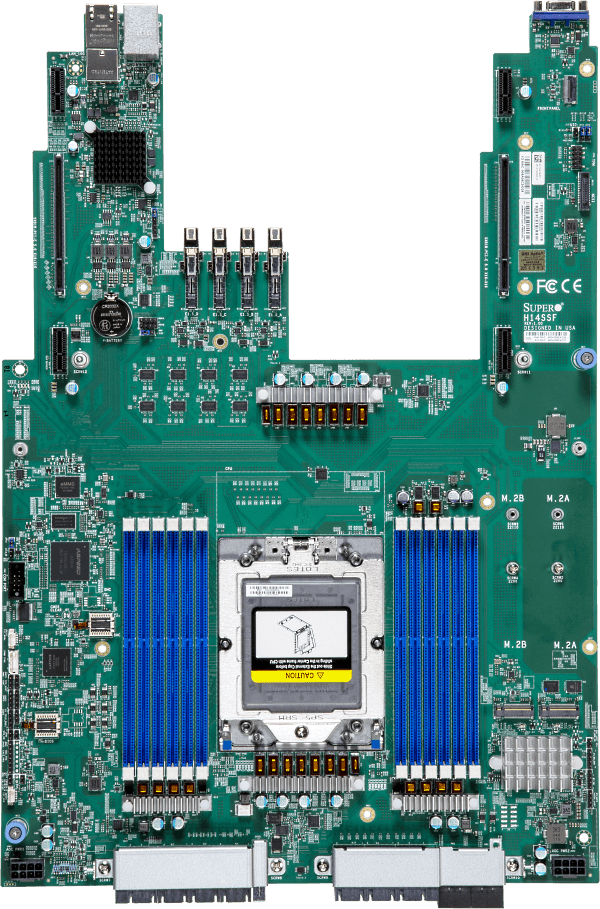

H14 UP Storage Server Board

Key Features


  1. Single AMD EPYC™ 9005 Series Processors Socket SP5
  2. 12 DDR5 DIMM slots (1DPC), up to 6400MT/s speed (Please check System Memory Section for details)
  3. 2 onboard M.2 NVMe slots for OS boot with RAID 0/1
  4. 4 PCIe 5.0 x16 via ExaMax connectors
  5. 3 PCIe 5.0 x16 for AOCs via Riser Card
  6. 1 PCIe 5.0 x16 for AOC or 4 PCIe x4 E1.S
  7. 2 10GBASE-T Ports
  8. On-board ASPEED AST2600 supports open BMC
  9. 2 USB3.0 ports, 1 IPMI GE LAN port and 1 VGA port
  10. Supports ROT and 1 TPM2.0 Header
...
...

Optimized Servers


ASG-4116S-NU160R
Specifications Resources Parts List
Specifications
Product SKUs
MBD-H14SSF
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 13" x 18.9" (33cm x 48cm)
Processor
CPU
Core Count
  • Up to 192C/384T
Note
  • Supports up to 500W TDP CPUs
System Memory
Memory
  • Slot Count: 12 DIMM Slots
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
DIMM Sizes
  • RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2600 BMC
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
  • Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 RJ45 10 GbE LAN port(s)
USB
  • 2 USB 3.0 Type-A port(s) (Front)
Video
  • 1 VGA port(s) (Front)
TPM
  • 1 TPM 2.0 Header
Expansion Slots
PCI-Express (PCIe) Configuration
  • 2 PCIe 5.0 x16 Right Riser slots
  • 2 PCIe 5.0 x16 Left Riser slots
  • 4 PCIe 5.0 x16 via Molex Impleplus Connector slots
  • 4 PCIe 5.0 x4 via E1.S Connector slots
M2
  • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110; RAID 0/1)
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • UEFI 2.8
  • ACPI 6.5
  • SMBIOS 3.7 or later
Management
Software
Power Configurations
  • Power button override mechanism
  • Power-on mode for AC power recovery
  • S5 Power State
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+12V Standby,+3.3V,+5V,+5V standby,1.8V standby,VBAT
LED
  • BMC Heartbeat LED
  • HDD activity LED
  • LAN Activity
  • M.2 LED
  • Power failed LED
  • Power status LED
Temperature
  • CPU temperature
  • I2C temperature sensing logic
  • Memory temperature
  • NVMe temperature
  • peripheral temperature
  • System temperature
Other Features
  • RoT
Resources
Servers (Optimized for H14SSF)
ASG-4116S-NU160R
...
Component Options
已測試的AOC清單
已測試的 HDD /SSD
已測試的 M.2 列表
已測試記憶體清單
Software
下載驅動程式光碟
下載最新驅動程式與實用工具
作業系統相容性
Documentation
主機板說明書
快速參考指南
Parts List
Optional Parts
Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9672H 1 AOM-TPM-9672H-TPM 2.0 with 10 pins SPI

H14SSF (For A+ Server Only) New
