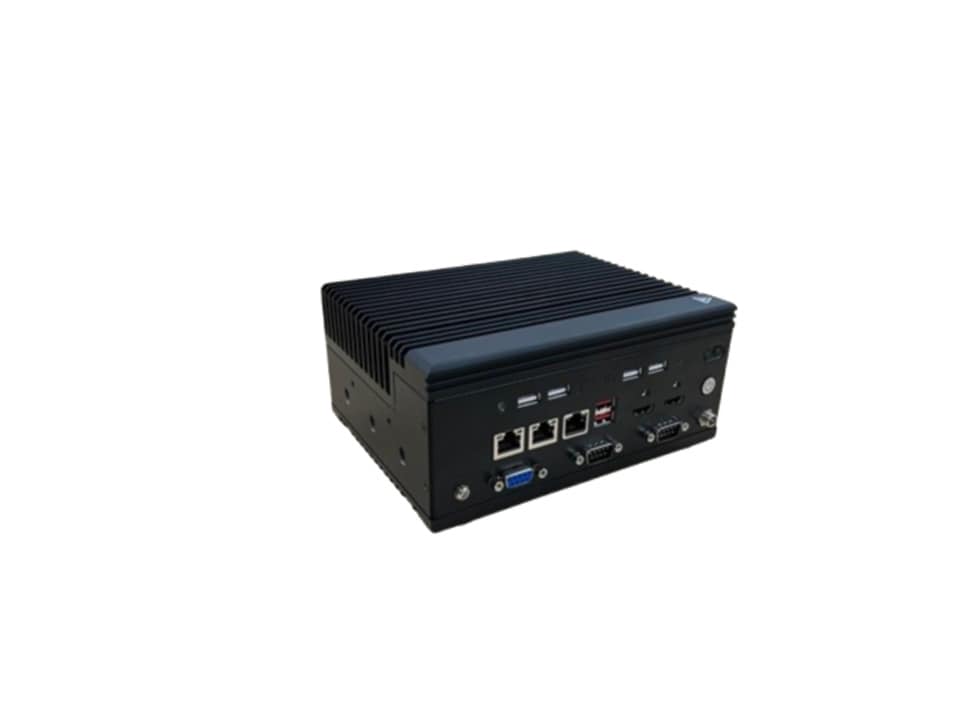

SuperServer

Fanless Edge AI System with Intel® Core™ Ultra Series 3 processor, up to 180 TOPS, up to 128GB DDR5, 2x 2.5GbE LAN ports, 2x HDMI 2.1

Integrated Board: X14SPN-H
了解更多

Key Applications

  • IoT Gateway
  • Computer Vision
  • Industrial Automation
  • Healthcare
  • Smart Building, Security and Surveillance
  • Smart Retail
  • Edge AI Inferencing
  • Edge AI
  • Digital Signage / PoS

Key Features

  1. AI Performance is up to 180 TOPS through the CPU/GPU/NPU hybrid computing
  2. Fanless Embedded chassis with 5.5" (140mm) depth
  3. Intel® Panther Lake-H Core Ultra 7 368H, up to 25W
  4. Up to 2 CSO/SO-DIMMs supporting up to 128GB DDR5-5600MHz
  5. 2 2.5GbE LAN with PoE and 1 1GbE LAN support Intel vPro
  6. 1 M.2 M-key 2242/2280, PCIe Gen5x4;
    1 M.2 E-key 2230, PCIe Gen4x1/USB2.0;
    1 M.2 B-key 2242/2280/3052 w/ nano SIM, PCIe Gen4x1 and USB3.2/USB2.0
  7. 2 HDMI 2.1; 2 USB 3.2 Gen 2& 4 USB2.0; 2 RS-232/422/485; 1 8 bits GPIO
  8. 2 NVMe 2280 at 2 M.2 M-Key
  9. DC 12-36V wide range power input support; 1 Lockable 150W 12V DC Power Adapter
...
...
SYS-E103-14P-H
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
SuperServer SYS-E103-14P-H
Motherboard
Super X14SPN-H
Processor
CPU
  • Single FCBGA-2540
  • Intel® Core™ Ultra X7 Processor 368H
Core Count
  • Up to 16C/16T; Up to 18MB Cache
Note
  • Supports up to 25W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 1 onboard GPU
Supported GPU
System Memory
Memory
  • Slot Count: 2 DIMM slots/2 Channels
  • Max Memory (1DPC): Up to 128GB 5600MT/s non-ECC DDR5 SO-DIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • 2 RJ45 2.5GbE with Intel® I226-IT
  • 1 RJ45 1GbE with Intel® I219-LM
  • 檢視 AOC 選項

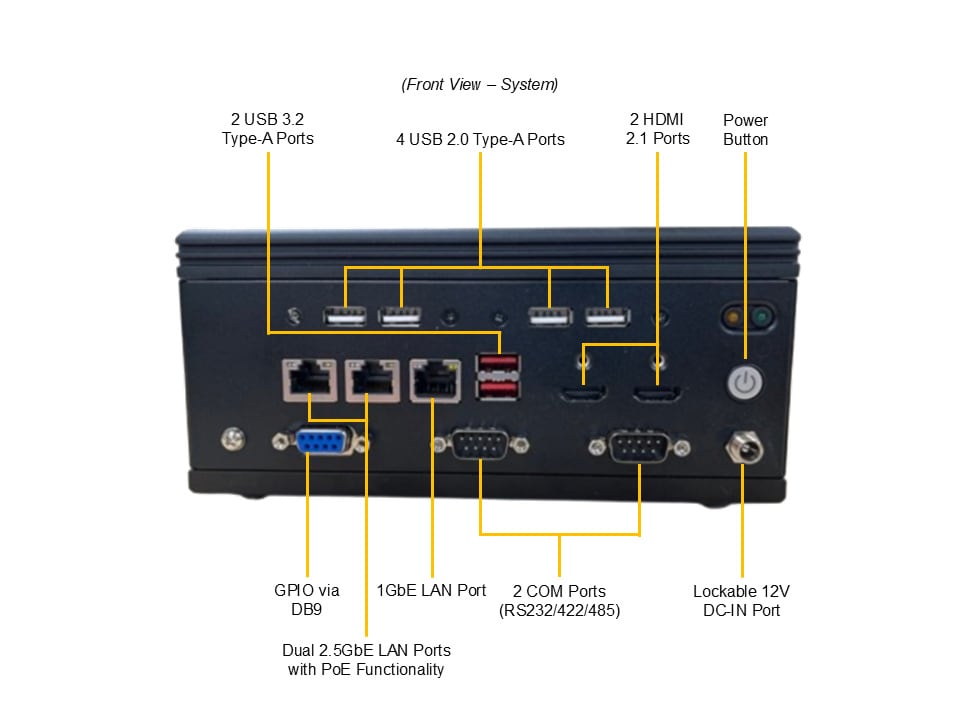

Input / Output
LAN
  • 1 RJ45 1 GbE LAN port (Intel® I219-LM)
  • 2 RJ45 2.5 GbE LAN ports (Intel® I226-IT)
USB
  • 2 USB 2.0 Type-A ports(front)
  • 2 USB 3.2 Gen2 Type-A ports(Front)
Video
  • 2 HDMI 2.1 ports(Front)
Serial
  • 2 COM RS232/RS422/RS485 ports(Front)
Others
  • 1 SMBus 8-bit GPIO port
System BIOS
BIOS Type
  • AMIUEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • PCI F/W 3.0
Management
Software
Power configurations
  • ACPI Power Management
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
  • Force power-on by jumper
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Chassis
Form Factor
  • Fanless Embedded
Model
  • CSE-E102L3
Dimensions and Weight
Height
  • 3.27" (83 mm)
Width
  • 7.28" (185 mm)
Depth
  • 5.5" (140 mm)
Package
  • 7.87" (H) x 11.42" (W) x 9.06" (D)
Weight
  • Gross Weight: 4.75 lbs (2.15 kg)
  • Net Weight: 3.25 lbs (1.47 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
LED
  • Power status
Expansion Slots
M.2
  • 1 M.2 PCIe 4.0 x2 NVMe slot (M-key 2280(default))
  • 1 M.2 PCIe 4.0 x1 slot (E-key 2230(default); USB 2.0)
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)/2242)
  • 1 M.2 PCIe 4.0 x1 NVMe slot (B-key 3052(default)/2242/2280; USB 3.0)
PCI-Express (PCIe) Configuration
Drive Bays / Storage
M.2
  • 1 M.2 PCIe 4.0 x2 NVMe slot (M-key 2280(default))
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)/2242)
System Cooling
Fans
  • N/A
Power Supply
1x 150W
1x 150W power supply
Dimension (WxHxL)151.3 x 25.4 x 75.6 mm
Input150W: 100-240Vac / 47-63Hz
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 0°C to 45°C (32°F to 113°F)
  • Non-operating Temperature: 0°C to 60°C (0°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
