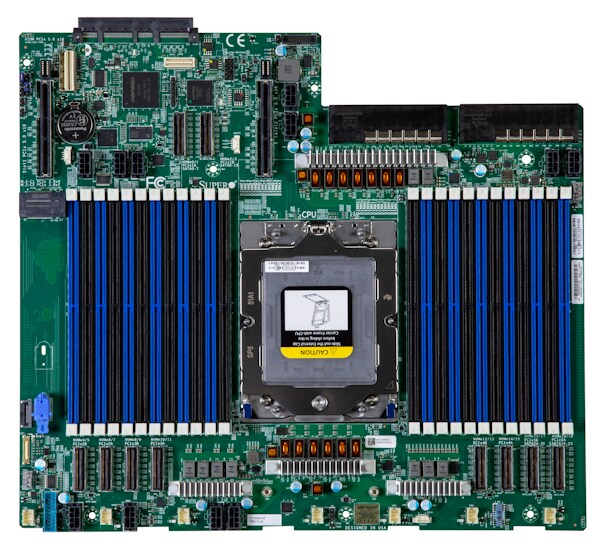

H13SSH-E (For SuperServer Only)

H13SSH-E
H13 Hyper

Key Features


  1. AMD EPYC™ 9004/9005 Series Processors
  2. System on Chip
  3. Support up to DDR5 24 DIMM slots (2DPC), speed up to 5200MT/s (Please check System Memory Section for detail)
  4. 24 NVMe (PCIe 5.0 x8)
  5. 2 PCIe 5.0 x16 Molex Impel plus connector
  6. M.2 Interface: 1 PCIe 3.0 x4, 1 PCIe 3.0 x2; M.2 (22110)
  7. 4 USB 3.0 ports (2 rear via riser + 2 via header)
...
...

Optimized Servers


AS -2115HE-FTNR
Specifications Resources
Specifications
Product SKUs
MBD-H13SSH-E
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 13" x 11" (33.02cm x 27.94cm)
Processor
CPU
Core Count
  • Up to 160C/320T
System Memory
Memory
  • Slot Count: 24 DIMM Slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
DIMM Sizes
  • RDIMM:16GB, 32GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2600 BMC
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (ASPEED AST2600 BMC)
USB
  • 2 USB 3.0 Type-A port(s) (Rear)
Video
  • 1 Aspeed AST2600 BMC port(s)
TPM
  • 1 TPM 2.0 Header
Others
  • 10 MCIO (PCIe 5.0 x8) port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • 1 PCIe 5.0 x16 Right Riser slot
  • 1 PCIe 5.0 x16 Left Riser slot
M2
  • 1 M.2 PCIe 3.0 x4 slot (M-key 22110(default))
  • 1 M.2 PCIe 3.0 x2 slot (M-key 22110(default))
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
Power Configurations
  • ACPI Power Management
  • Power button override mechanism
  • Power-on mode control for AC power loss recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+3.3V,+3.3V standby,+5V,+5V standby,CPU temperature,CPU thermal trip support
LED
  • BMC/IPMI Heartbeat LED
  • CPU/system overheat LED
  • UID/remote UID LED
FAN
  • 7x 6-pin fan headers (up to 7 fans)
Resources
Servers (Optimized for H13SSH-E)
AS -2115HE-FTNR
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

H13SSH-E (For A+ Server Only) Coming Soon
