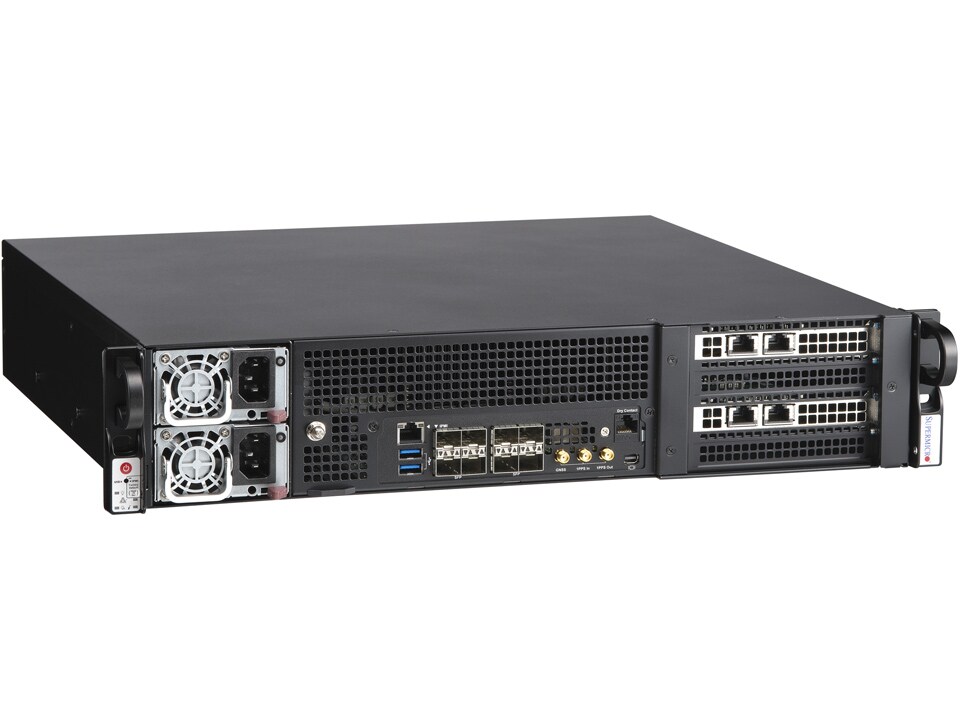

SuperServer SYS-212D-64C-FN8P

Key Applications

  • Multi-Access Edge Computing
  • Flex-RAN, Open-RAN vBBU
  • Telco Edge
  • Artificial Intelligence (AI) on Edge
  • DU of 5G Application
  • Satellite Communication
  • vRAN/o-RAN

Key Features

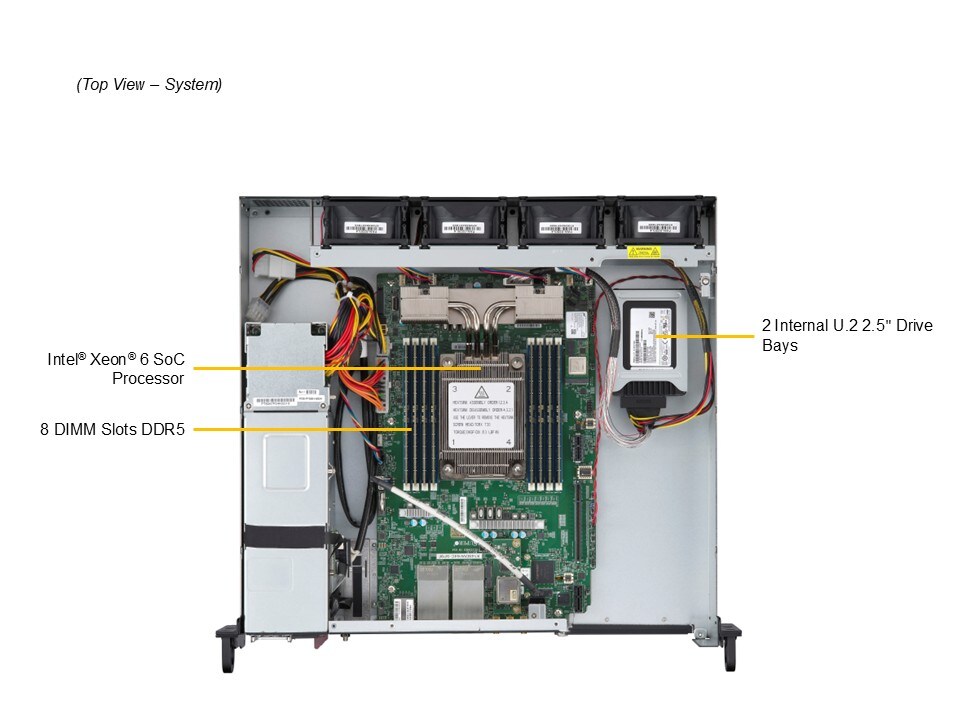

  1. Intel® Xeon® 6 SoC, 300W TDP / 64 Cores, Intel® Speed Select Technology, Intel® vRAN Boost
  2. Up to 8 DIMMs supporting up to 1TB DDR5-6400 in 1DPC
  3. On-board 8 SFP28 25GbE
    3 SMA (GNSS / 1PPS in / 1PPS out) port(s)
  4. Up to 2 PCIe 5.0 x16 FHHL slots
  5. Up to 2 internal fixed 2.5" NVMe drive bays
  6. 2U Rackmount chassis with 11.8" (298.8mm) depth
...
...
SYS-212D-64C-FN8P
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
SuperServer SYS-212D-64C-FN8P
Motherboard
Super X14SDW-64C-SP9F
Processor
CPU
  • Intel® Xeon® 6 SoC
Core Count
  • 64C/128T
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): 1TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity

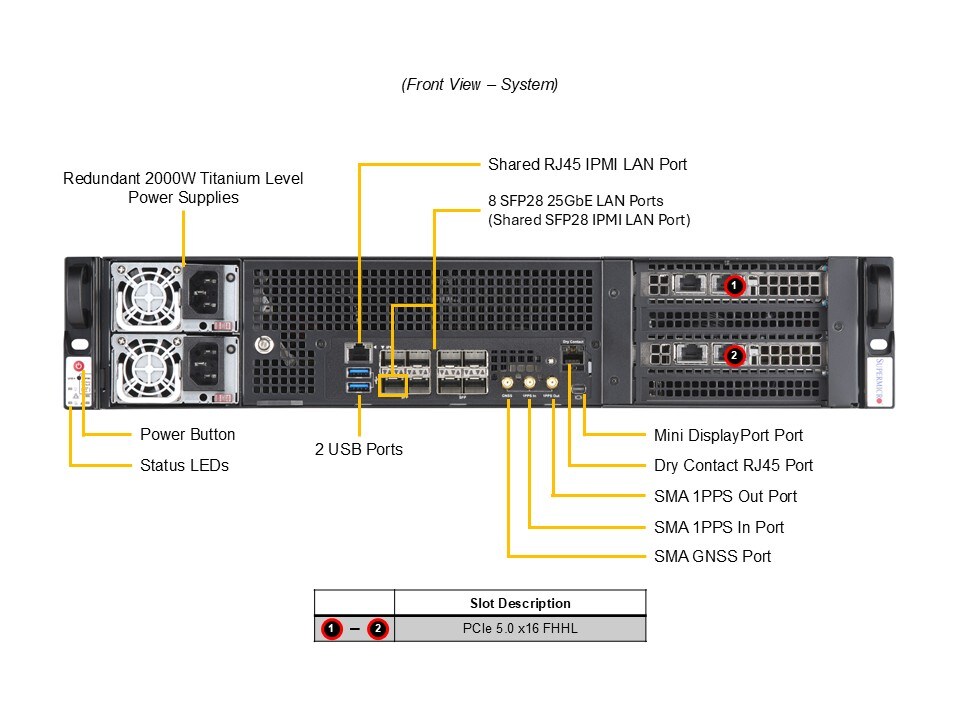

Input / Output
LAN
  • 1 RJ45 1 GbE LAN port (Intel® I210-IT) (IPMI shared on LAN port 1)
  • 8 SFP28 25 GbE LAN ports (Intel® SOC) (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 mini-DP port
TPM
  • 1 TPM header
  • 1 TPM Onboard/port 80
Others
  • 1 Dry contact (4 sets) port
  • 3 SMA (GNSS / 1PPS in / 1PPS out) ports
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
Voltage
  • Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-221M2-R000NDP
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)

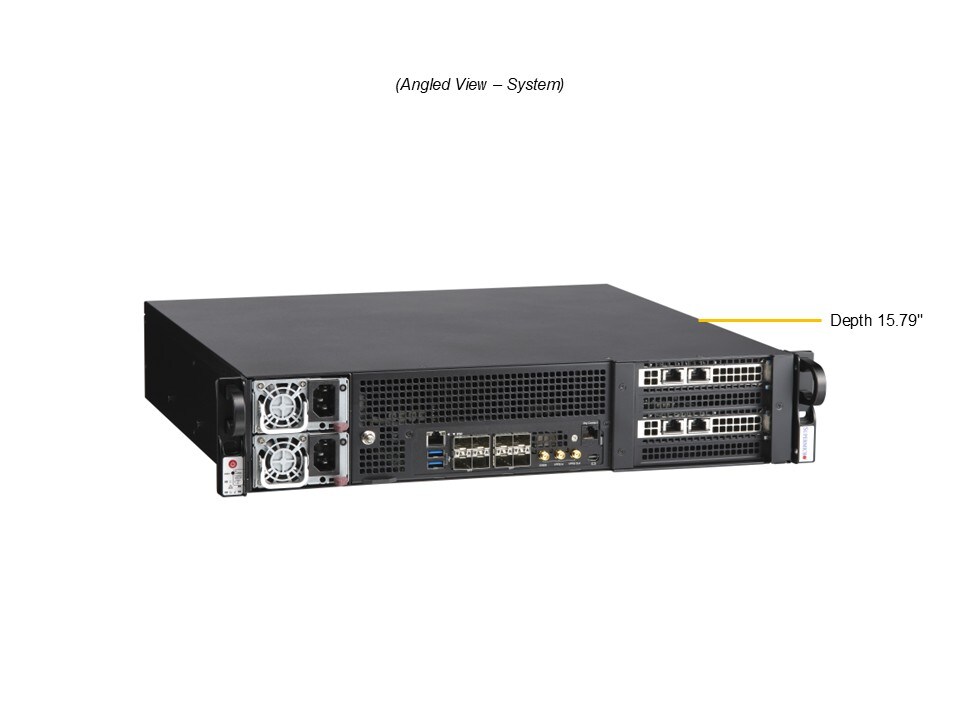

Depth
  • 15.79" (401.1 mm)
Package
  • 10.47" (H) x 28.35" (W) x 21.85" (D)
Weight
  • Gross Weight: 19.84 lbs (9 kg)
  • Net Weight: 13.23 lbs (6 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 internal fixed 2.5" NVMe drive bays
M.2
  • 1 M.2 PCIe 5.0 x2 NVMe slot (M-key 2280(default); VROC required for RAID)
System Cooling
Fans

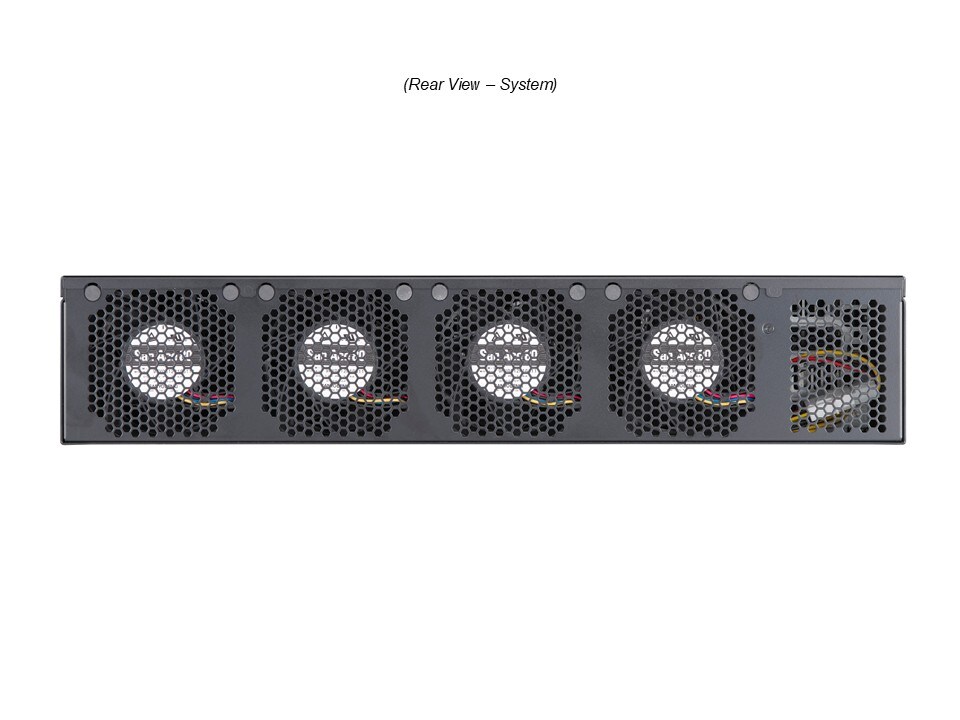

  • Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
2x 2000W
2x 2000W Redundant (1 + 1) Titanium (certification pending) Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 83A (100Vac-127Vac)
Max: 150A (200Vac-220Vac)
Max: 166A / Min: 0A (200Vac-240Vac)
Max: 165A (220Vac-230Vac)
Max: 166A (230Vac-240Vac)
12V SBMax: 3.5A
Output TypeBackplanes (gold finger)
2x 1300W
2x 1300W Redundant (1 + 1) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
DC Input108.3A Max
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 66.7A / Min: 0A (100Vac-127Vac)
Max: 66.7A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
