Supermicro 2x PCIe Gen 4 Hybrid hotswappable NVMe/SATA M.2 OS boot storage RAID adapter

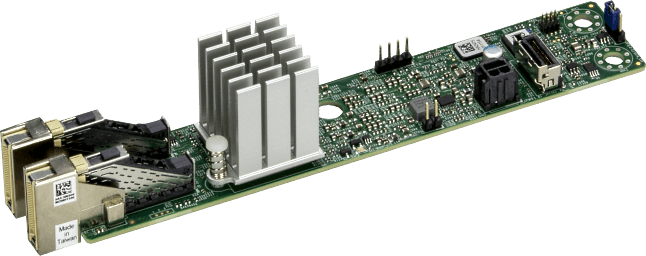

The Supermicro AOC-SMG4-2M2 is a PCIe Gen 4.0 x4 M.2 OS boot storage RAID adapter that enables the user to add up to two NVMe or SATA M.2 SSDs and supports M,2 hot-swappable with converter. M.2 solid state technology is an optimized, high-performance, scalable storage solution, effectively streamlined for enterprise and client systems that leverage the cutting-edge power of PCI Express 4.0 technology. AOC-SMG4-2M2 supports hot-swappable M.2 with converter, in 22110 and 2280 M.2 SSD form factors with RAID 0 and RAID 1.
This product is only available through Supermicro. Supermicro recommends that you use AOC-SMG4-2M2 ONLY as an operating system boot device. 2 pcs MCP-220-12108-0N (the M.2 Converter Tray) are needed.
Compatible with Supermicro motherboards only.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
OS boot storage adapter
Broadcom SAS 3808N, supporting RAID 0, 1
Auto-detect SATA3 or NVMe Gen 4 M.2 with converter
M.2 to E1.S Converter (MCP-220-12108-0N)
22*110, 22*80 mm M.2 SSD Form Factor
PCIe Gen 4 x4 host interface with MCIO connector
Management:
LSI Storage Authority, LSA
StorCLI (command-line interface)
UEFI HII Configuration Utility
BMC-enabled management
OS support: Windows, Linux, VMware
Power Consumption: 10W (AOC only; M.2 power consumption excluded)
Thermal operating range: System dependent (55°C or higher w/ enough airflow
