SuperServer

4U Storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 5.0

Integrated Board: X14SBI-TF
了解更多

Key Applications

  • Database Applications
  • Backup Storage, Cold Storage
  • Data Warehousing, Archiving

Key Features

  1. HBA by Broadcom® SAS3816 on main drive bays
  2. Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
  3. Up to 2TB DDR5-6400MT/s registered ECC in 8 DIMM slots (1DPC)
  4. 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
  5. Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots *
    * Slot 1 is occupied by system's default controller

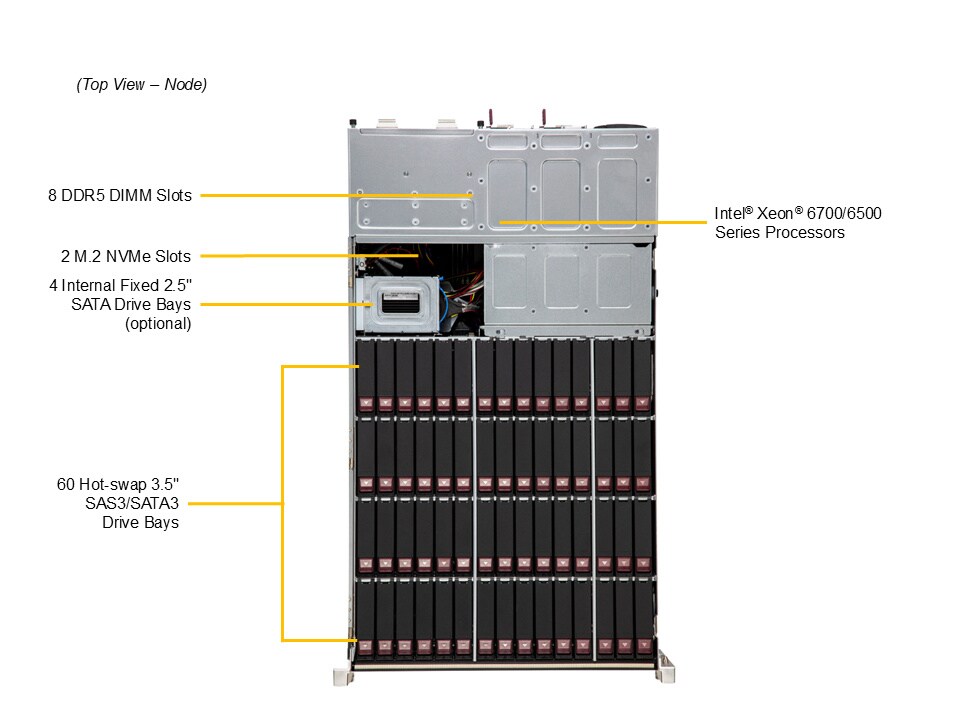

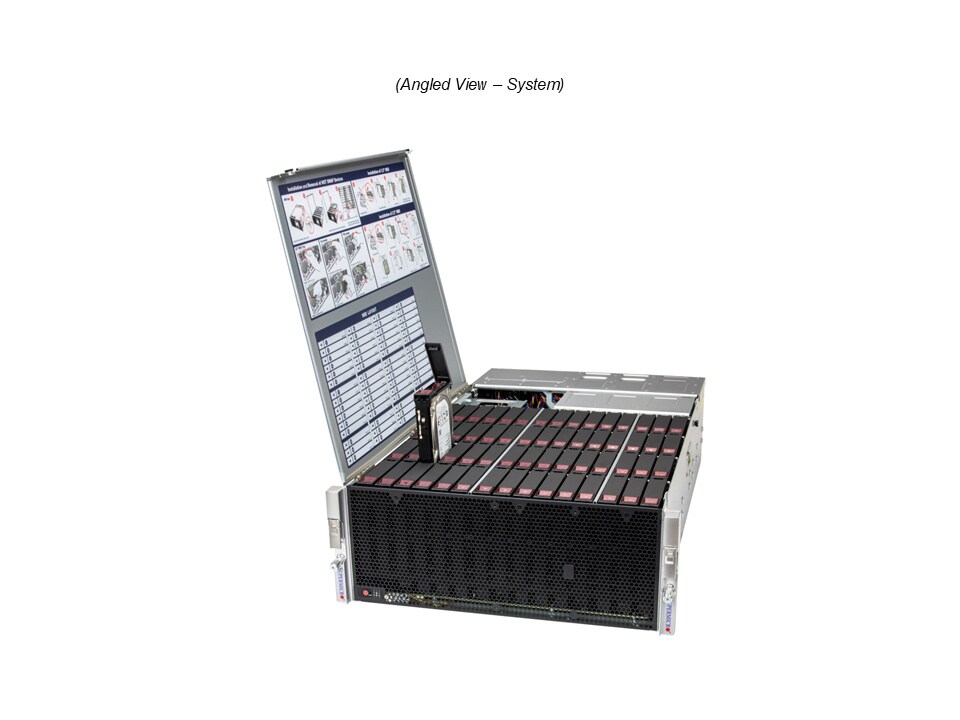

  6. Up to 60 top-loading hot-swap 3.5" SAS/SATA drive bays
    Optional 4 hot-plug NVMe or SATA SSDs
  7. 2 Redundant 1600W Titanium Level Hot-plug power supplies
...
...
SSG-542B-CE1CR60L
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-542B-CE1CR60L
Motherboard
超級 X14SBI-TF
Processor
CPU
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 USB 3.2 Gen1 ports(Header)
  • 2 USB 3.2 Gen1 ports(Rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
  • Runtime BMC Protections
  • Supply Chain Security: Remote Attestation
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946STS-R1K63LPP
Dimensions and Weight
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 26" (767.08 mm)
Package
  • 33.25" (H) x 28" (W) x 42.5" (D)
Weight
  • Gross Weight: 169.5 lbs (76.9 kg)
  • Net Weight: 117 lbs (53 kg)
Available Color
  • Black

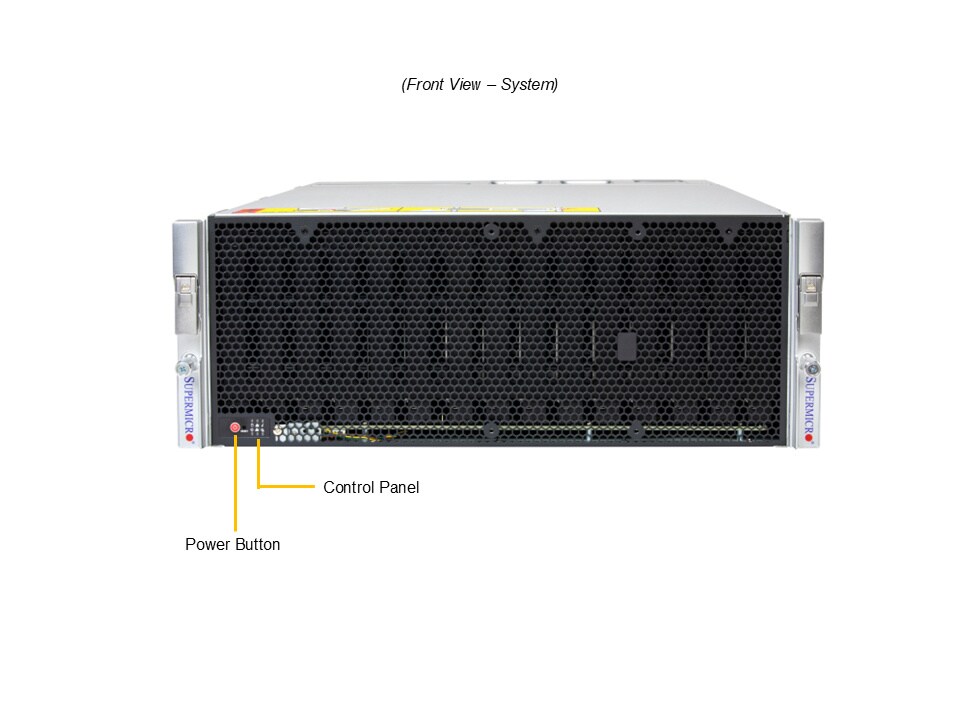

Front Panel
Buttons
  • Power On/Off button
  • Unit Identification (UID) button
LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
  • System Information LED

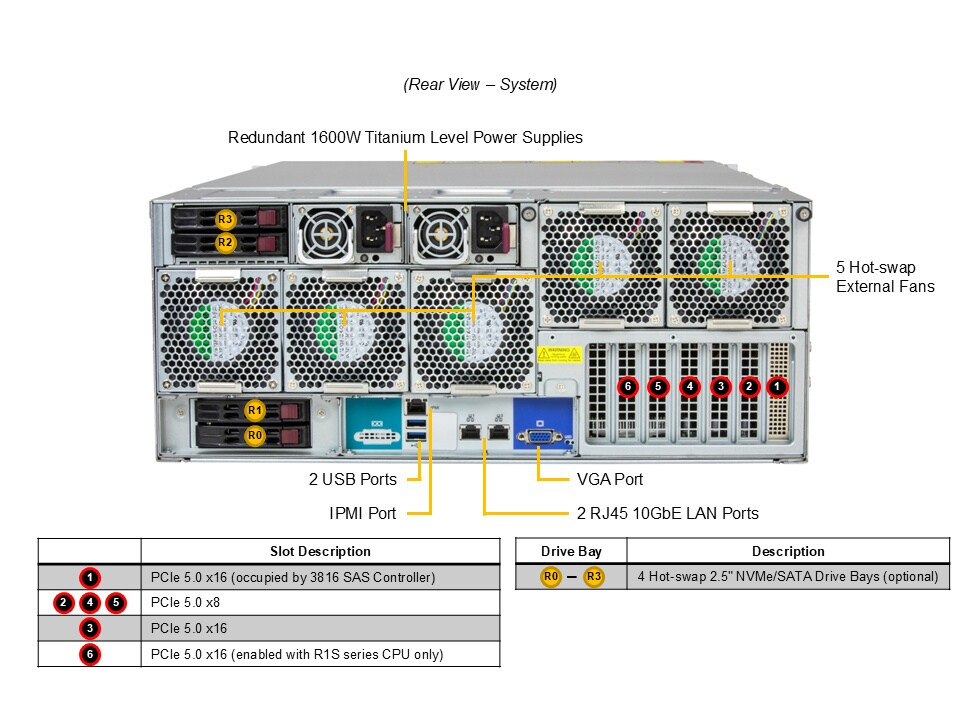

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 3 PCIe 5.0 x16 (in x16) LP slots
    • 3 PCIe 5.0 x8 (in x8) LP slots
  • 檢視 AOC 選項
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 60 bays

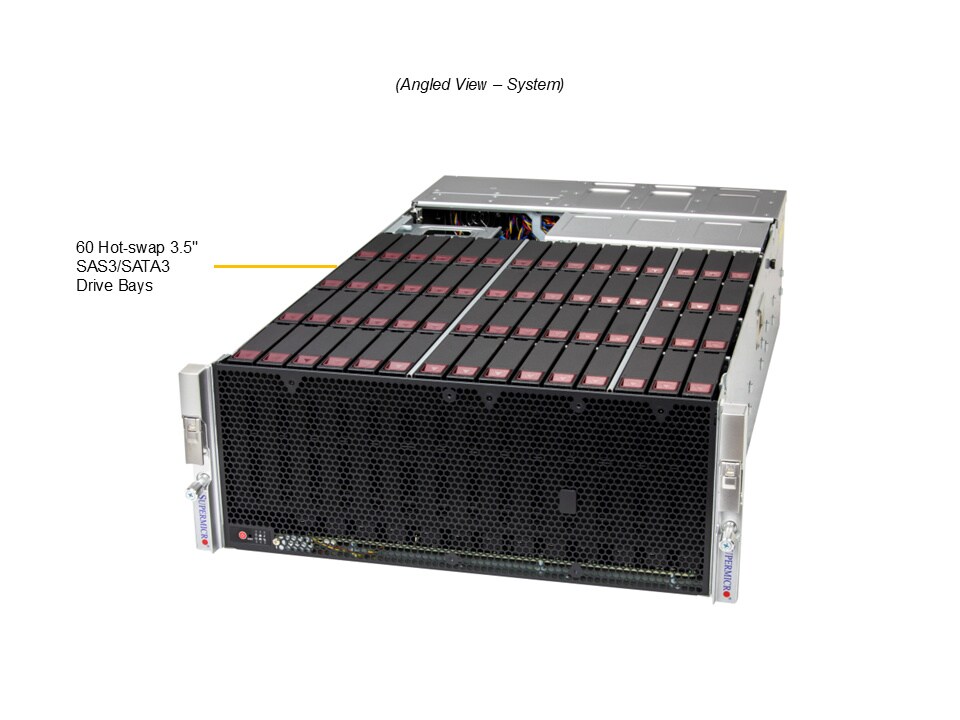

    • 60 top-loading hot-swap 3.5" SAS/SATA drive bays
  • Option A: Total 4 bays
    • 4 rear hot-swap 2.5" PCIe 5.0 x8 NVMe* drive bays
  • Option B: Total 4 bays
    • 4 rear hot-swap 2.5" SATA* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
System Cooling
Fans
  • Up to 5 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 1600W
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

排程存取
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Four Rear NVMe Drive Bay BPN-NVME5-826N-B2B 1 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
CBL-MCIO-1235M5 2 MCIO x8 (STR to STR),35cm,85OHM,RoHS
CBL-PWEX-1123-30 2 MicroHi,2x2F,P3.0 to 1x4M,P5.08,30cm,9A/p,16AWG,RoHS
MCP-220-00167-0B • 2 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
MCP-220-82623-0N 1 Dual 2.5 NVMe5 Drive Kit for 216B/826B/218H2,RoHS
Four Rear SATA Drive Bay BPN-SAS3-826TQ-B2B 1 2-Port 12Gbps Backplane for 2x2.5"" SAS/SATA HDD/SSD
CBL-SAST-1280QT4S2-100 1 SlimSASx4 STR to 4xSATA w/2SB,80CM,100Ohm,RoHS
MCP-220-82616-0N • 1 12G 2.5x2 Drive Kit w/ Status LED
Intel VROC RAID Key for NVMe AOC-VROCPREMOD • 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
Power Cord CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 • - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SFT-SDDC-SINGLE 1 SuperCloud Composer (per node license)
TPM AOM-TPM-9672V-O 1 AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHS

Storage SuperServer SSG-542B-CE1CR60L Coming Soon
