SuperServer AS -1015SV-WTNRT

1U UP WIO with 4 hot-swap 3.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 slots

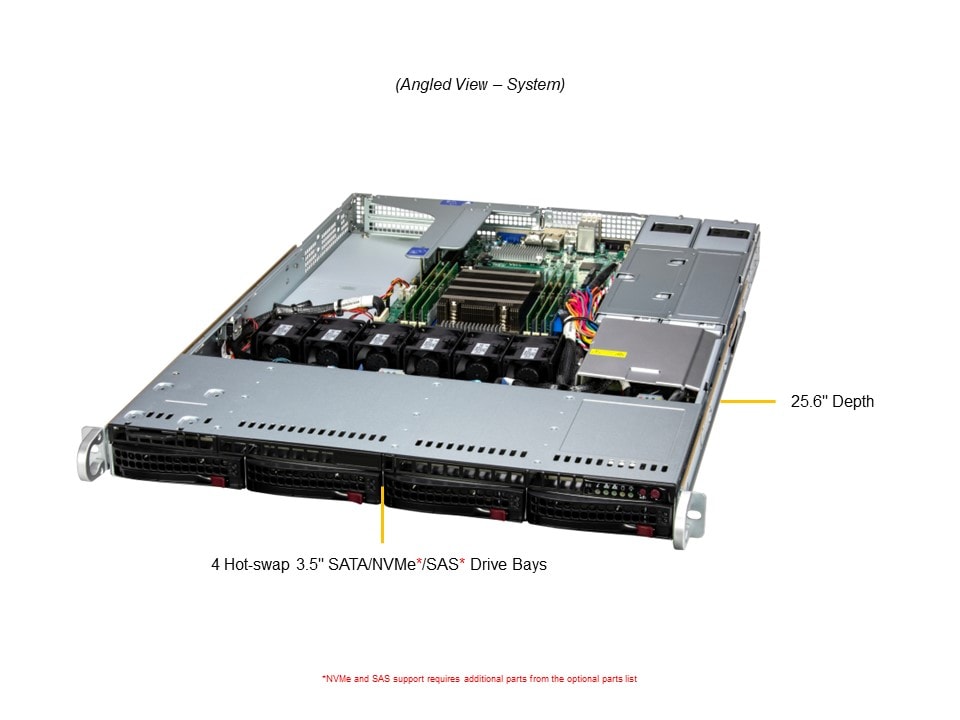

AS -1015SV-WTNRT Main AS -1015SV-WTNRT Angle AS -1015SV-WTNRT Top AS -1015SV-WTNRT Front AS -1015SV-WTNRT Rear
Integrated Board: H13SVW-NT
Learn more

Key Applications

  • Virtualization
  • Data Center Optimized
  • Firewall Applications
  • Database/Storage
  • Edge/Cloud Computing Services

Key Features

  1. Single Socket AMD EPYC™ 8004 Series Processor
  2. 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
  3. 2 PCIe 5.0 x16 FHFL;
    1 PCIe 5.0 x16 LP
  4. Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
  5. 4 hot-swap 3.5" drive bays support SATA(default)/NVMe/SAS drives (optional cables or SAS controller card for NVMe and SAS drive bays)
...
...
AS-1015SV-WTNRT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -1015SV-WTNRT
Motherboard
Super H13SVW-NT
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 8004 Series Processor
Core Count
  • Up to 64C/128T
Note
  • Supports up to 225W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
Supported GPU
System Memory
Memory
  • Slot Count: 6 DIMM slots
  • Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 4 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
Power configurations
  • 1U redundant 800/860W Titanium AC power supply
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
  • CSE-815BTS-R000WNP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 8.5" (H) x 23.5" (W) x 33.7" (D)
Weight
  • Gross Weight: 34.5 lbs (15.46 kg)
  • Net Weight: 21.5 lbs (9.75 kg)
Available Color
  • Black
Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
  • Unit Identification (UID) LED
Buttons
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 6 Heavy duty counter-rotating 40x40x56mm Fan(s)
Power Supply
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SVW-NT

CSE-815BTS-R000WNP
1

1
Super H13SVW-NT Motherboard

1U Chassis
Backplane BPN-NVME5-LA15-S4 1 1U 4-Slot 3.5" Hybrid Backplane for 4x AS3/SATA3/NVME5 S
Cable CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-MCIO-1270OT4S2-85 1 MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS
CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0163L4 6 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Panel MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
FPB-FP815U 1 815 UIO front control board (U)
Power Supply PWS-861A-1R 2 1U redundant 800/860W Titanium AC power supply 54.5x40x322mm
MCP-250-81502-0N 1 SC815 Redundant Power Distributor Cover
Riser Card RSC-W-66G5 1 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
RSC-WR-6G5H 1 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0062P-1 1 1U Passive CPU Heat Sink for AMD Socket SP6 Processors
*Power Distributor PDB-PT116-SL8824 1 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Fan Holder CSE-PT0135 1 FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
*Peripheral Drive CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
*Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
*Rear Window MCP-240-00202-0N 1 1U WIO rear window to support top-load riser bracket for SC815B,SC116B
*Rail Set MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
MCP-290-00054-0N 1set Rail set, quick/quick, optional for 1U 17.2
*Air Shroud MCP-310-81506-0B 1 Air block for 1U WIO SC815B with X13SEW
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
2.5" to 3.5" Toolless Converter Tray MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
GPU Kit CBL-0424L 1 GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm
CBL-PWEX-1240 1 GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM
MCP-310-81504-0B 1 1U air shroud for SC815/SC116 for Tesla V100 and Tesla T4
NVMe Cable (Drive Bay 0-1) CBL-MCIO-1235M5Y 1 MCIO (x8 to 2 x4) STR,25CM,85OHM
NVMe Cable (Drive Bay 2-3) CBL-MCIO-1225M5Y 1 MCIO (x8 to 2 x4) STR,25CM,85OHM
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
