SuperChassis 826SE1C-R1K02JBOD2SuperChassis 826SE1C-R1K02JBOD2

Key Features


  • Simply Double High Density JBOD Storage Enclosure

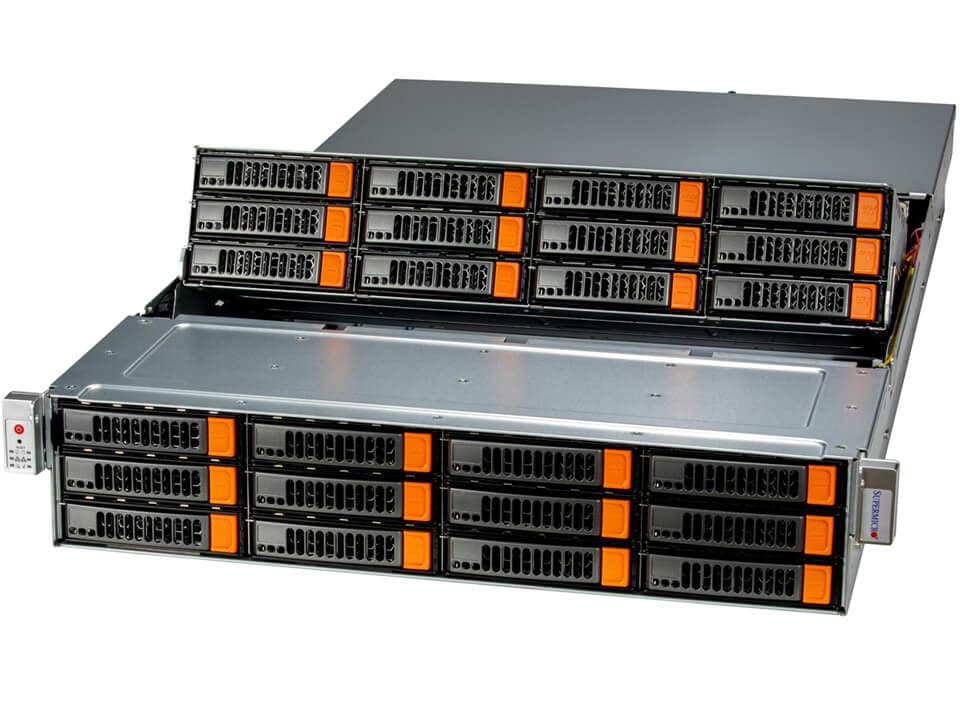

  1. Extreme High Density Storage Chassis support 24x (12 front + 12 middle) 3.5" SAS/SATA 12Gb/s Hot-Swap Bays
  2. Single Expander Backplane Boards support SAS/SATA HDDs with 12Gb/s throughput
  3. 4x Mini-SAS HD ports for Internal/External Cascading
  4. 1000W (1+1) Redundant High-efficiency Titanium Level power supplies with PMBus
  5. Optimize cooling with 4x 8cm Hot-Swap fans
  6. JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included
  7. Qualified SAS HBA / controller:
    AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
    AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
Specifications Resources Parts List
Specifications
Product SKUs
CSE-826SE1C-R1K02JBOD2
Form Factor
  • 2U
Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 34" (863.6 mm)
  • 41" (1041 mm) with cable management arm installed
Gross Weight
  • 55 lbs (24.95 kg)
Net Weight
  • 40 lbs (18.14 kg)
Packaging (W x H x L)
  • 29.09" (739 mm) x 11.96" (304 mm) x 51" (1295 mm)
Available Color
  • Black

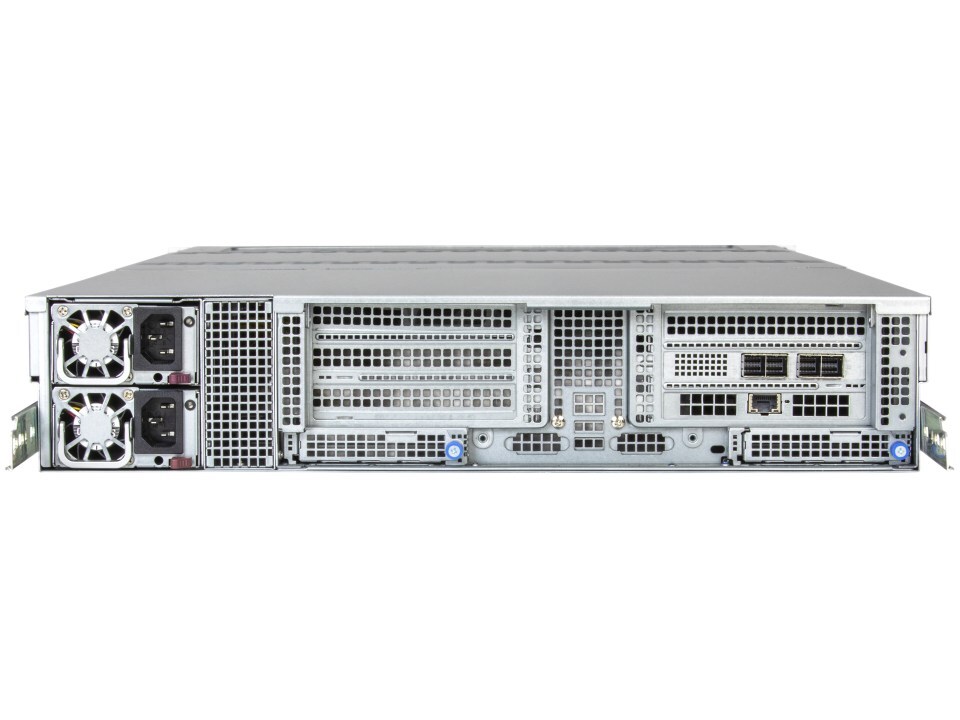

Expansion Slots
  • 1x IPMI LAN
  • 4x SFF-8644 Mini SAS HD
Drive Bays
  • 24x 3.5" hot-swap SAS3/SATA3 drive bay for JBOD solution
Qualified SAS Controllers
  • AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter
  • AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter
  • AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller
Backplane
  • 12-Port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD storage devices
  • 12-Port 2U SAS3 12Gbps top-loading backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD storage devices
Front Panel
Button
  • Power On/Off button
  • Unit Identification (UID) button
LED
  • Power status LED
  • 1 Network activity LEDs
  • Power Fail LED
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 4x 8cm hot-swap redundant PWM cooling fan(s)
System Monitoring
  • IPMI
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 800/1000W redundant CRPS Power Supply
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 100 - 127Vac
  • 1000W with Input 200 - 240Vac
  • 1000W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 203 x 73.5 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66.7A / Min: 0A (100Vac - 127Vac)
  • Max: 83A / Min: 0A (200Vac - 240Vac)
  • Max: 83A (200Vdc - 240Vdc)
+12Vsb
  • Max: 2.1A / Min: 0A
Power Distributor
  • PDB-PT826-H2824
  • O/P: 12V/168A
  • +5V Max: 60A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • 钛认证  Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
