SuperServer SYS-420GP-TNAR+-US

DP Intel system with NVIDIA HGX A100 8-GPU and 3000W Power Supplies, Made in USA

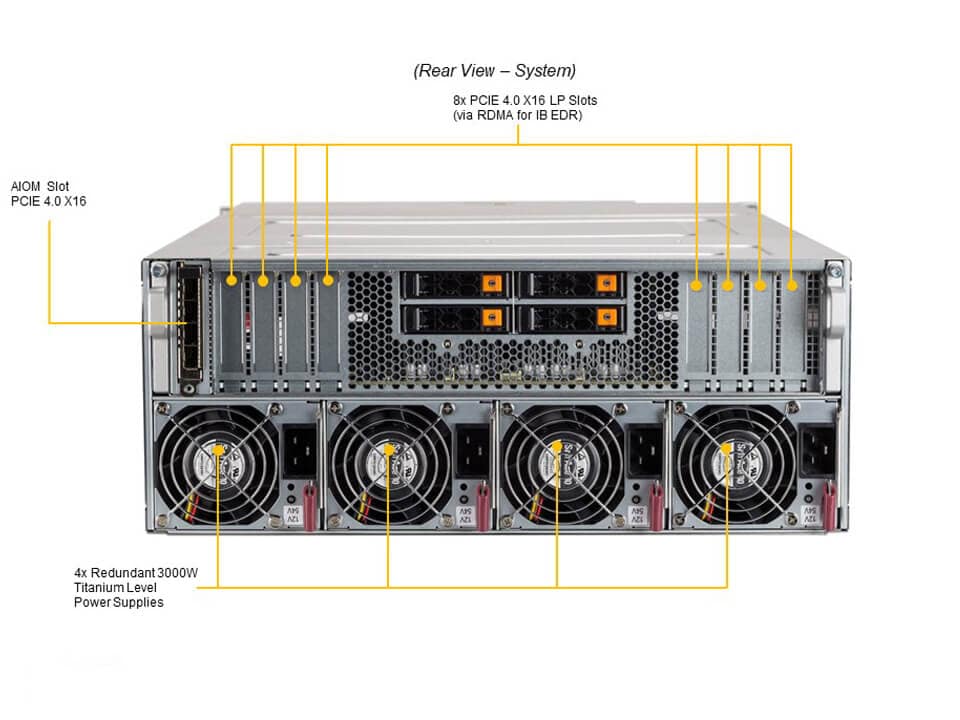

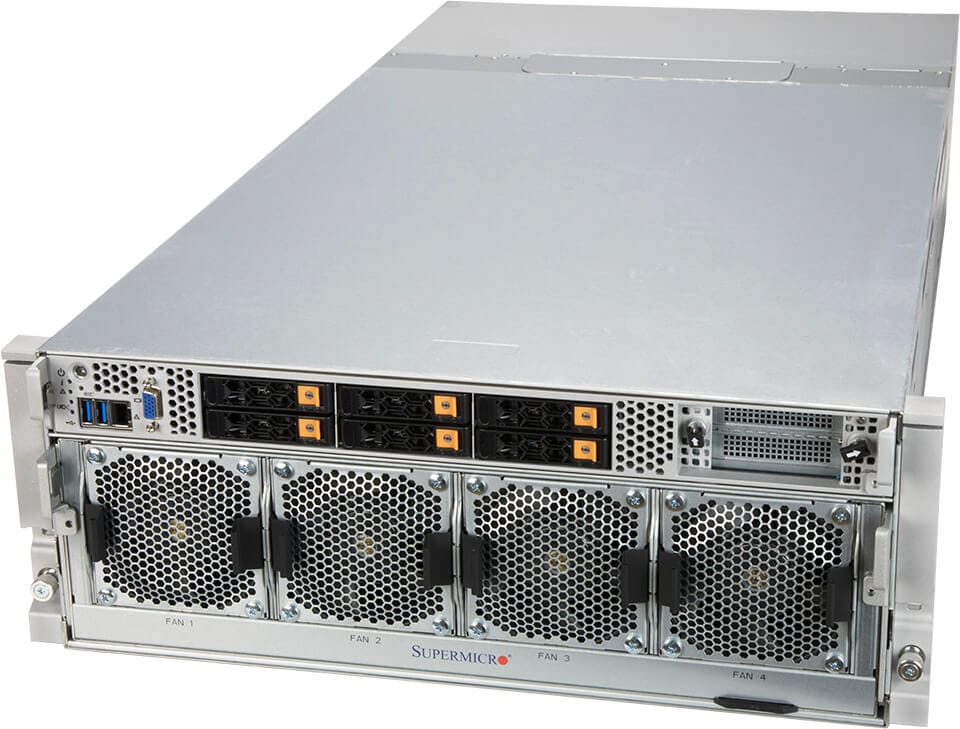

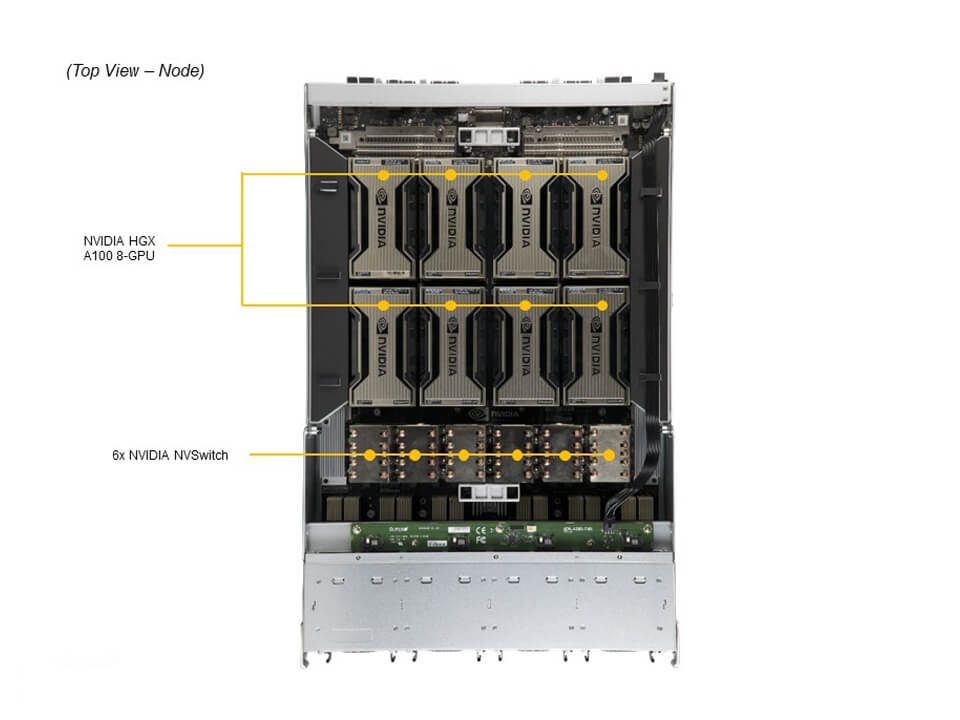

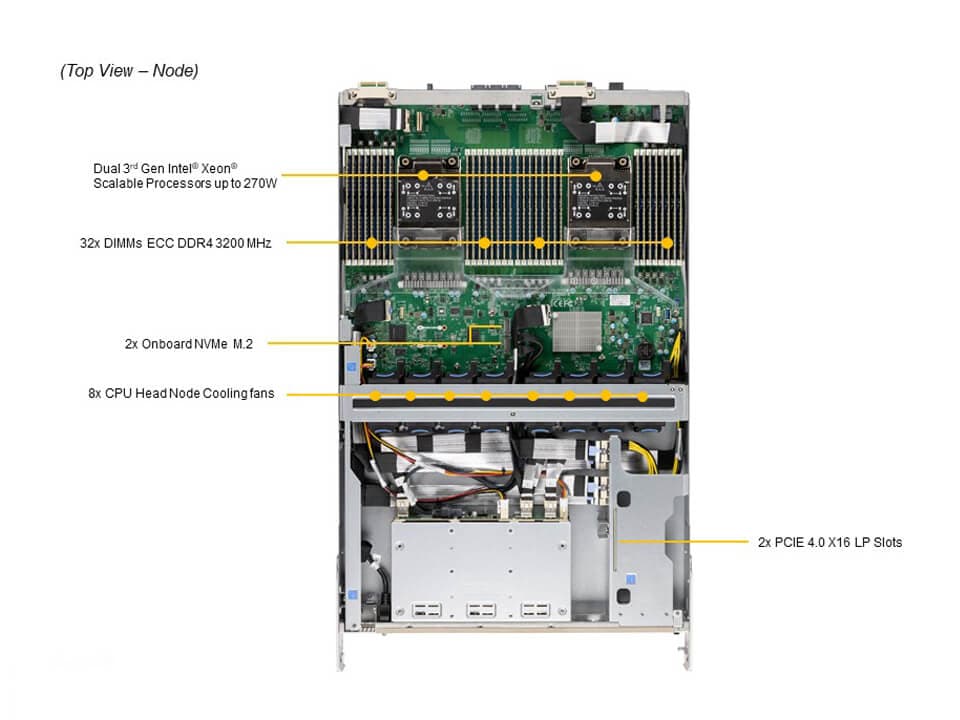

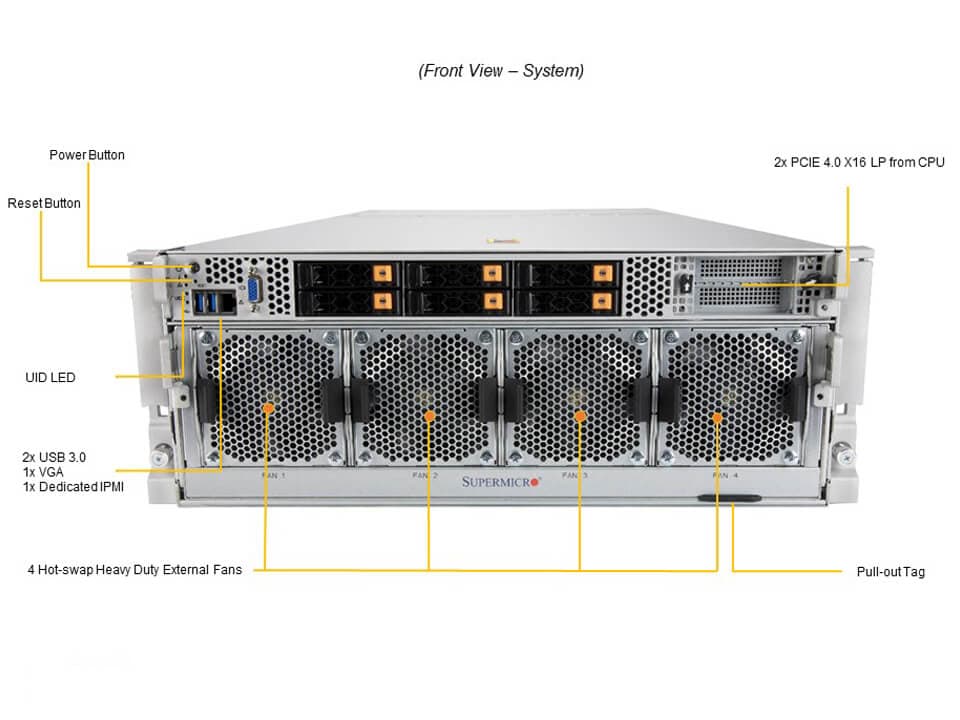

SYS-420GP-TNAR+-US Main SYS-420GP-TNAR+-US Angle SYS-420GP-TNAR+-US Top SYS-420GP-TNAR+-US Node SYS-420GP-TNAR+-US Front SYS-420GP-TNAR+-US Rear
Integrated Board: X12DGO-6
Learn more

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 10 PCIe Gen 4.0 X16 LP Slots
    AIOM/OCP 3.0 Support
  4. Flexible networking options
  5. 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays
    2 M.2 NVMe and SATA for boot drive only
  6. 4 heavy duty fans with optimal fan speed control
  7. 4x 3000W redundant Titanium level power supplies
...
...
SYS-420GP-TNAR+-US
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
SuperServer SYS-420GP-TNAR+-US
Motherboard
Super X12DGO-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 onboard GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink® with NVSwitch™
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-438G
Dimensions and Weight
Height
  • 6.9" (174 mm)
Width
  • 17.6" (446 mm)
Depth
  • 35.4" (900 mm)
Package
  • 29.5" (H) x 27.4" (W) x 44.9" (D)
Weight
  • Gross Weight: 225 lbs (102.1 kg)
  • Net Weight: 166 lbs (75.3 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control
Power Supply
1x 3000W
1x 3000W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)106.5 x 82.4 x 203.5 mm
Input2880W: 200-207Vac
2880W: 200-207Vac / 50-60Hz
3000W: 207.1-240Vac
3000W: 207.1-240Vac / 50-60Hz
3000W: 240Vdc
3000W: 240Vdc / 50-60Hz
+12VMax: 91.66A / Min: 0A (200Vac-240Vac)
Max: 91.66A / Min: 0A (Vdc-240Vdc)
12V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
