Supermicro WekaIO 分布式存储解决方案

难以想象的共享和并行文件系统,可最大限度地提高存储性能,满足最极端的需求!

解决方案概述

随着数据如暴风雨般涌向当今的企业系统,并迅速淹没了容量,传统的 IT 基础架构,在实时数据分发及响应应用的过程中,遇到了前所未有的挑战,如何解决应用程序的“数据饥饿”并获取最大价值也变得越来越有挑战性。

整合 Weka 在并行文件存储的优势,超微提供基于 NVMe 闪存的高性能、超低延迟共享存储的解决方案。联合解决方案在 Supermicro 验证过的 NVMe 系统上运行,可支持最高性能的处理器、内存、存储和网络,专为全闪存储和云原生解决方案而生,在技术设计上进一步优化。并且为现代数据中心提速,推动数据中心实现突破性创新。

无论数据中心规模大小,我们已经准备好以前所未有的速度和性能帮助客户解锁数据中心的全部功能。

解决方案优势

WekaFS 将整个数据池统一到一个共享的全局命名空间中,您可以在其中轻松地从一个目录访问和管理数万亿个文件。它可以立即适应任何新的工作负载,一次性完成设置不需要调整,简单操作也无需其他专业知识。Weka存在于您的数据所在的任何位置,无论是在本地、公共云中还是在两者之间共享。

WekaIO Solution Diagram 1
WekaIO Solution Diagram 2

专为云而构建

在本地、云中和平台之间无缝运行

共享存储体系结构

享受从任何应用程序到单个数据命名空间的共享访问

针对 NVMe 优化

实现尽可能低的延迟以及最高的带宽和 IOPS 性能

多协议就绪

支持 Linux、视窗和本机 POSIX 访问数据

内置耐用性

使用分布式数据保护和即时备份到 S3 云以实现快速恢复

高级安全性

通过集成的加密、密钥管理和访问控制确保数据完全安全

使用案例

人工智能和机器学习

生命科学,包括基因组学和 Cryo-EM

金融交易,包括 回溯测试、时间序列分析和风险管理

工程 DevOps

电子设计与自动化

媒体渲染和视觉效果 (VFX)

高性能计算 (HPC)

高性能数据分析,例如 Cassandra, SAS 和 Splunk

产品简介

Supermicro-NVMe 参考架构实现了下一代智能基础架构平台,旨在为应用程序提供您期望从本地存储中获得的所有原始性能,以及传统基于存储区域网络的解决方案通常具有的所有灵活性、可管理性和可扩展性。该参考架构采用最新的 NVMe 和 PCIe 标准,使用低延迟、高带宽网络,以灵活的方式将计算和存储连接在一起,几乎可满足任何应用的架构要求。例如以存储为中心、以计算为中心或混合存储和计算配置中部署此架构平台,可根据具体需要将其与现有数据中心应用服务器有效结合。

Scale Out diagram

Reference Architecture - AMD & Intel PCI-E 5.0 Systems

System GenerationH13 (AMD PCIe Gen5)X13 (Intel PCIe Gen5)
ImageAS -WK1032C-GEN5ASG-WK1032C-NE3SYS-221BT-WK4NSSG-WK1248C-NE3
Form Factor8U8U4U8U
Supermicro Weka Bundle SKU**** 8x AS -WK1032C-GEN5 (1U 1N)
or 8x AS -WK1048C-GEN5 (1U 1N)
*** 8x ASG-WK1032C-NE3 (1U 1N)
or 8x ASG-WK1048C-NE3 (1U 1N)
*** 2x SYS-221BT-WK4N (2U 4N)*** 8x SSG-WK1248C-NE3 (1U 1N)
CPU per node1x AMD Genoa 32C
or 1x AMD Genoa 48C
1x AMD Genoa 32C
or 1x AMD Genoa 48C
2x Intel SPR 16C2x Intel SPR 24C
Storage Media NVMe80x (up to 10x NVMe per node) 2.5"128x (up to 16x NVMe per node) E3.S48x (up to 6x NVMe per node) 2.5"128x (up to 16x NVMe per node) E3.S
Network**16x Single -port Mellanox CX-7 400G VPI16x Single -port Mellanox CX-7 400G VPI16x Single -port Mellanox CX-7 400G VPI16x Single -port Mellanox CX-7 400G VPI
Weka License1yr, 3yr, 5yr options1yr, 3yr, 5yr options1yr, 3yr, 5yr options1yr, 3yr, 5yr options

*Supermicro bundle SKU already includes CPU, Memory, boot devices, MGMT NIC, Supermicro Management Software Suite (DCMS) and OS installation service required for Weka storage solution.

**Network: option w/ 200G is available.

***A Weka cluster requires a minimum of 8x nodes

参考架构 – 采用 AMD 和Intel PCI-E 4.0系统

System GenerationH12 (AMD with PCI-E 4.0)X12 (Intel with PCI-E 4.0)
Image8x AS -1114S-WN10RT8x AS -2114S-WN24RT2x SYS-220BT-HNTR3x SYS-220BT-DNTR
Supermicro SKU8x AS -1114S-WN10RT
(1U 1-Node)
8x AS -2114S-WN24RT
(2U 1-Node)
2x SYS-220BT-HNTR
(2U 4-Node)
4x SYS-220BT-DNTR
(2U 2-Node)
Form Factor8U16U4U8U
Usable Capacity363TB726TB218TB436TB
Storage Media NVMe*80x(10x 7.68TB/node)
Gen4 NVMe
160x (20x 7.68TB/node)
Gen4 NVMe
48x (6x 7.68TB/node)
Gen4 NVMe
96x (12x 7.68TB/node)
Gen4 NVMe
CPU8x AMD EPYC™ 7402P Processors**8x AMD EPYC™ 7402P Processors**16x Intel® Xeon® Silver 4314 Processors16x Intel® Xeon® Silver 4314 Processors
Memory2048GB2048GB2048GB2048GB
Network16x single-port
Mellanox CX-6 200G VPI
16x single-port
Mellanox CX-6 200G VPI
16x single-port
Mellanox CX-6 200G VPI
16x single-port
Mellanox CX-6 200G VPI
IOPS***10.2M
(1.275M per node)
8.4M
(1.05M per node)
8.5M
(1.06M per node)
11.28M
(1.41M per node)
Bandwidth***235GB/s
(29.4GB/s per node)
280GB/s
(35GB/s per node)
202GB/s
(25GB/s per node)
286GB/s
(35.8GB/s per node)
I/O Latency< 200μs< 200μs< 200μs< 200μs
SW Subscription1yr, 3yrs, 5yrs1yr, 3yrs, 5yrs1yr, 3yrs, 5yrs1yr, 3yrs, 5yrs

* To request drives of a different capacity, please contact weka-pm@supermicro.com or _nl_weka-pm@supermicro.com (for EMEA region) or APAC_weka-pm@supermicro.com (for APAC region).
** 3rd Gen AMD EPYC™ 7003 Processors are available.
*** Estimated; number varies based on actual components used.

Reference Architecture – AMD and Intel Delta GPU Systems with GPUDirect storage enable

Image1x AS -4124GO-NART (AMD Delta GPU System)1x SYS-420GP-TNAR (Intel Delta GPU System)
Supermicro SKU1x AS -4124GO-NART
(AMD Delta GPU System)
1x SYS-420GP-TNAR
(Intel Delta GPU System)
CPU2x AMD EPYC 7H12 CPU 64C @2.6GHz2x Intel Xeon 8380 CPU 40C @3.4GHz
GPU8x NVIDIA A100-SXM4-80GB8x NVIDIA A100-SXM4-80GB
Memory2TB DDR4-32002TB DDR4-3200
OSOS: Ubuntu 20.04.3
OS Disk: 7.68TB NVMe
OS: Ubuntu 20.04.3
OS Disk: 7.68TB NVMe
NVMeOptionalOptional
GDS Enable SKUPRD-STORAGE, SFT-LT-15S01000300PRD-STORAGE, SFT-LT-15S01000300

*To enable GPUDirect for the GPU system, please add 1x PRD-STORAGE & SFT-LT-15S01000300 per system
Hassle-free GPU Framework Installation utility (SFT-LT-15S01000300) can also be sold alone with other GPU systems. Please contact weka-pm@supermicro.com for details.

Weka 参考体系结构认证的服务器

AS -1115CS-TNR

AS -1114S-WN10RT

1U 1-Node WIO

AMD with PCI-E 4.0

AS -1114S-WN10RT

  • Single AMD EPYC™ 7003/7002 Series Processor
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
  • 10 Hot-swap NVMe/SATA3 hybrid drive bays
  • 750W Redundant Platinum Level Power Supplies
ASG-1115S-NE316R

AS -1114S-WN10RT

1U 1-Node WIO

AMD with PCI-E 4.0

AS -1114S-WN10RT

  • Single AMD EPYC™ 7003/7002 Series Processor
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
  • 10 Hot-swap NVMe/SATA3 hybrid drive bays
  • 750W Redundant Platinum Level Power Supplies
SYS-221BT-HNR

AS -1114S-WN10RT

1U 1-Node WIO

AMD with PCI-E 4.0

AS -1114S-WN10RT

  • Single AMD EPYC™ 7003/7002 Series Processor
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
  • 10 Hot-swap NVMe/SATA3 hybrid drive bays
  • 750W Redundant Platinum Level Power Supplies
SSG-121E-NE316R

AS -1114S-WN10RT

1U 1-Node WIO

AMD with PCI-E 4.0

AS -1114S-WN10RT

  • Single AMD EPYC™ 7003/7002 Series Processor
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
  • 10 Hot-swap NVMe/SATA3 hybrid drive bays
  • 750W Redundant Platinum Level Power Supplies
AS -1114S-WN10RT

AS -1114S-WN10RT

1U 1-Node WIO

AMD with PCI-E 4.0

AS -1114S-WN10RT

  • Single AMD EPYC™ 7003/7002 Series Processor
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
  • 10 Hot-swap NVMe/SATA3 hybrid drive bays
  • 750W Redundant Platinum Level Power Supplies
AS -2114S-WN24RT

AS -2114S-WN24RT

2U 1-Node WIO

AMD with PCI-E 4.0

AS -2114S-WN24RT

  • Single AMD EPYC™ 7003/7002 Series Processor
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 1 PCI-E 4.0 x16 (FH/HL) slot
  • 24 Hot-swap NVMe/SATA3 drive bays
  • 1200W Redundant Titanium Level Power Supplies
AS -F1114S-RNTR

AS -F1114S-RNTR

4U 8-Node FatTwin®

AMD with PCI-E 4.0

AS -F1114S-RNTR

  • 8 hot-pluggable nodes in 4U; each node supports:
  • Single AMD EPYC™ 7003/7002 Series Processor
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 1 PCI-E 4.0 x16 (LP Riser) slot, 1 PCI-E 3.0 x16 (for AIOM)
  • 6 Hot-swap 2.5" NVMe/SATA3 drive bays: 2 NVMe/SATA3 + 4 SATA3 (optional NVMe)
  • 2200W Redundant Titanium Level Power Supplies
SYS-220BT-HNTR

SYS-220BT-HNTR

2U 4-Node BigTwin®

Intel with PCI-E 4.0

SYS-220BT-HNTR

  • 4 hot-pluggable nodes in 2U; each node supports:
  • Dual 3rd Gen Intel® Xeon® Scalable processors
  • 20 DIMMs; Up to 6TB DDR4-3200: Intel® Optane™ Persistent Memory 200 Series; Up to 4TB ECC DDR4-3200: RDIMM
  • 2 PCI-E 4.0 x16 (LP) slots
  • 6 Hot-swap 2.5" NVMe/SATA drive bays
  • 2600W Redundant Titanium Level Power Supplies
SYS-220BT-DNTR

SYS-220BT-DNTR

2U 2-Node BigTwin®

Intel with PCI-E 4.0

SYS-220BT-DNTR

  • 2 hot-pluggable nodes in 2U; each node supports:
  • Dual 3rd Gen Intel® Xeon® Scalable processors
  • 20 DIMMs; Up to 6TB DDR4-3200: Intel® Optane™ Persistent Memory 200 Series; Up to 4TB ECC DDR4-3200: RDIMM
  • 1 PCI-E 4.0 x16 (LP) slot, 2 PCI-E 4.0 x8 slots
  • 12 Hot-swap 2.5" NVMe/SATA drive bays
  • 2200W Redundant Titanium Level Power Supplies
SYS-1029U-TN10RT

SYS-1029U-TN10RT

1U 1-Node Ultra

Intel with PCI-E 3.0

SYS-1029U-TN10RT

  • Dual 2nd Gen Intel® Xeon® Scalable processors
  • 24 DIMMs; Up to up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM; supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L)
  • 10 Hot-swap 2.5" NVMe drive bays
  • 1000W Redundant Titanium Level Power Supplies
SYS-2029BT-HNR

SYS-2029BT-HNR

2U 4-Node BigTwin®

Intel with PCI-E 3.0

SYS-2029BT-HNR

  • 4 hot-pluggable nodes in 2U; each node supports:
  • Dual 2nd Gen Intel® Xeon® Scalable processors
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM; Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16 (LP) slots
  • 6 Hot-swap 2.5" NVMe drive bays
  • 2200W Redundant Titanium Level Power Supplies

Certified Delta GPU RTX Servers for Weka GPUDirect Storage

AS -4124GO-NART AMD Delta GPU System

AS -4124GO-NART

4U AMD Delta GPU System

AS -4124GO-NART

  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 32 DIMMs; up to 8TB Registered ECC DDR4 3200MHz SDRAM
  • 8 PCI-E 4.0 x16 via PCI-E switch;1 PCI-E 4.0 x16 LP and 1 PCI-E 4.0 x8 LP via CPUs
  • 6 Hot-swap 2.5" drive bays
  • 2200W (3+1) Redundant Platinum Level Power Supplies
SYS-420GP-TNAR Intel Delta GPU System

SYS-420GP-TNAR

4U Intel Delta GPU System

SYS-420GP-TNAR

  • Dual 3rd Gen Intel® Xeon® Scalable Processors
  • 32 DIMMs; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM/RDIMM;
  • 10 PCI-E 4.0 x16 LP slots
  • 6 Hot-swap 2.5" drive bays
  • 2200W (3+1) Redundant Platinum Level Power Supplies

认证网络适配器

AOC-CX766003N-SQ0

AOC-CX766003N-SQ0

AOC-653106A-HDAT

AOC-653106A-HDAT

AOC-653105A-HDAT

AOC-653105A-HDAT

AOC-MCX556A-ECAT

AOC-MCX556A-ECAT

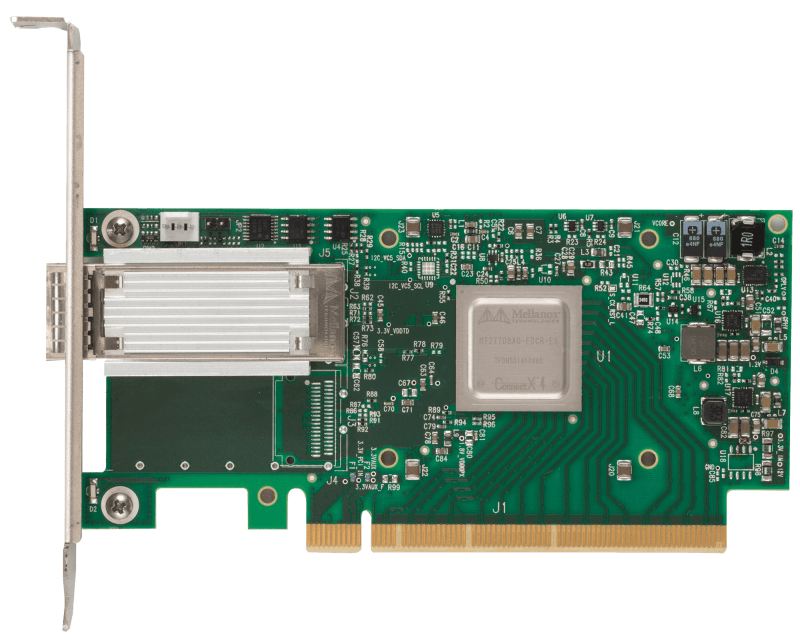

AOC-MCX555A-ECAT

AOC-MCX555A-ECAT

Learn more at our Partner Site:
