BH4SRG (For SuperServer Only)

BH4SRG

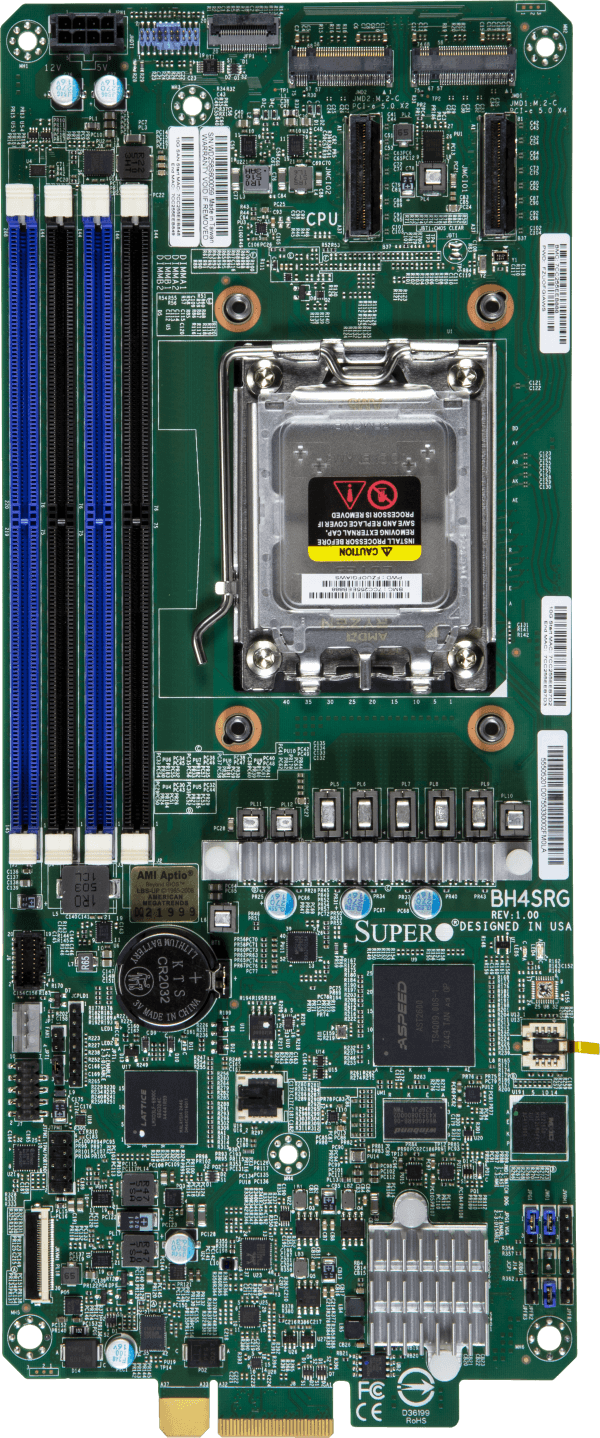

H13 UP MicroBlade Server Board

Key Features


  1. AMD EPYC™ 4005/4004 series processors, single socket LGA-1718 (Socket AM5) supported, APU TDP supports up to 170W TDP
  2. Up to 192GB ECC/non-ECC unbuffered DIMM, DDR5-5600MHz, in 4 DIMM slots
  3. 2 PCIe 5.0 x8 MCIO connectors for GPU / 2x U.2 NVME riser
  4. 1 PCIe 5.0 x4 and 1 PCIe 5.0 x2 M.2 slots for 22110/2280 M.2 drives
  5. Onboard Broadcom BCM57414 Dual-Port 10GbE Base-KR PCIe 3.0 x4 to back panel
  6. Power distribution board to support extra GPU in 6U AMD Microblade
...
...

Optimized Servers


MBA-315R-1G
Specifications Resources
Specifications
Product SKUs
MBD-BH4SRG
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.8" x 12" (12.2cm x 30.48cm)
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 4004 / 4005
Core Count
  • Up to 16C/32T
Note
  • Supports up to 170W TDP CPUs
System Memory
Memory
  • Slot Count: 4 DIMM Slots/2 Channels
  • Max Memory (2DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
DIMM Sizes
  • UDIMM:16GB, 24GB, 32GB, 48GB
Memory Voltage
  • 1.1V
Error Detection
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2600 BMC
Network Controller
  • Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI
Input / Output
TPM
  • 1 TPM 2.0 Header & Chip both
Expansion Slots
PCI-Express (PCIe) Configuration
  • 2 PCIe 5.0 x8 via MCIO Connector slots
M2
  • 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280/22110)
  • 1 M.2 PCIe 5.0 x2 NVMe slot (M-key 2280/22110)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,VBAT
LED
  • CPU/system overheat LED
  • LAN activity LED
  • Power LED
  • UID/remote UID LED
Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
FAN
  • Fan speed control
Other Features
  • ACPI power management
  • Control of power-on for recovery from AC power loss
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F )
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources
Servers (Optimized for BH4SRG)
MBA-315R-1G
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
