MicroBlade MBA-315R-1G (Complete System Only)

Products MicroBlade MicroBlade [ MBA-315R-1G ]

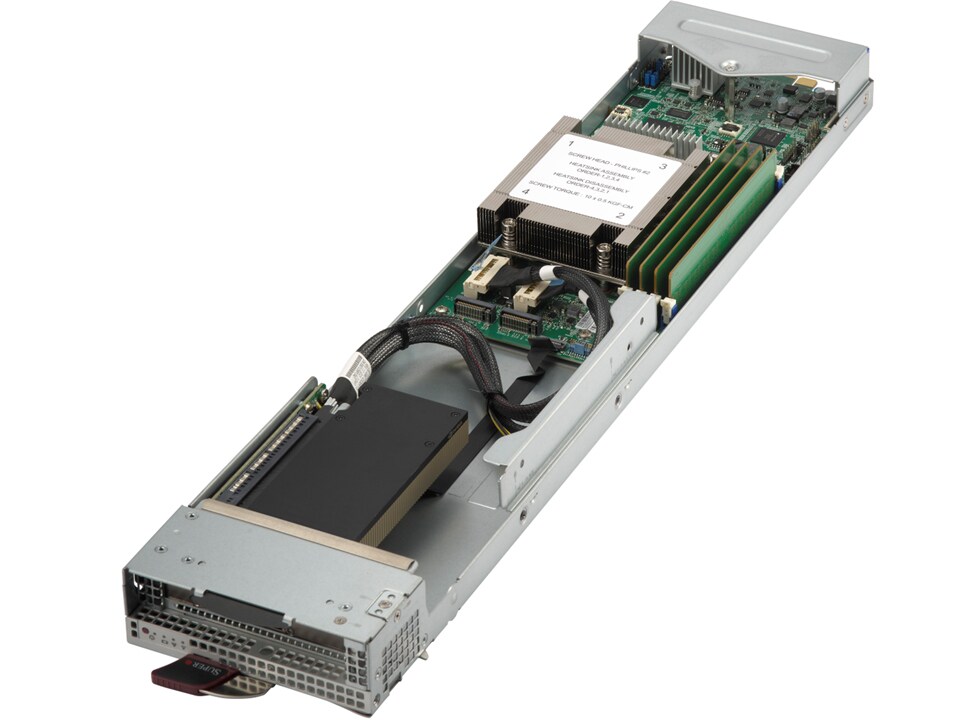

MBA-315R-1G: View Larger



Integrated Board
MicroBlade motherboard BH4SRG
BH4SRG

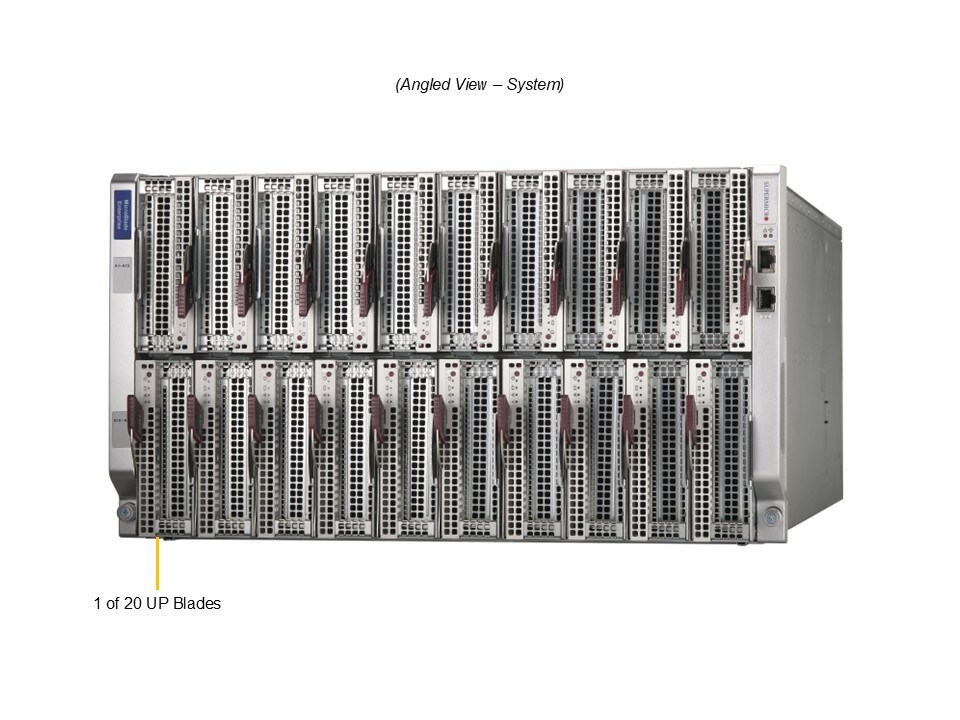

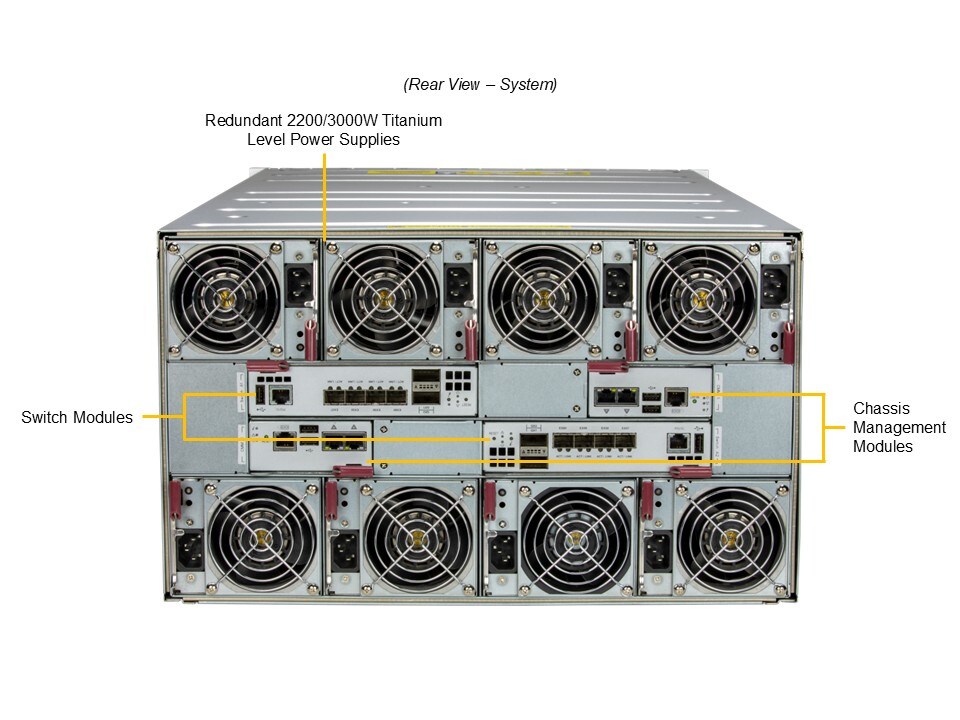

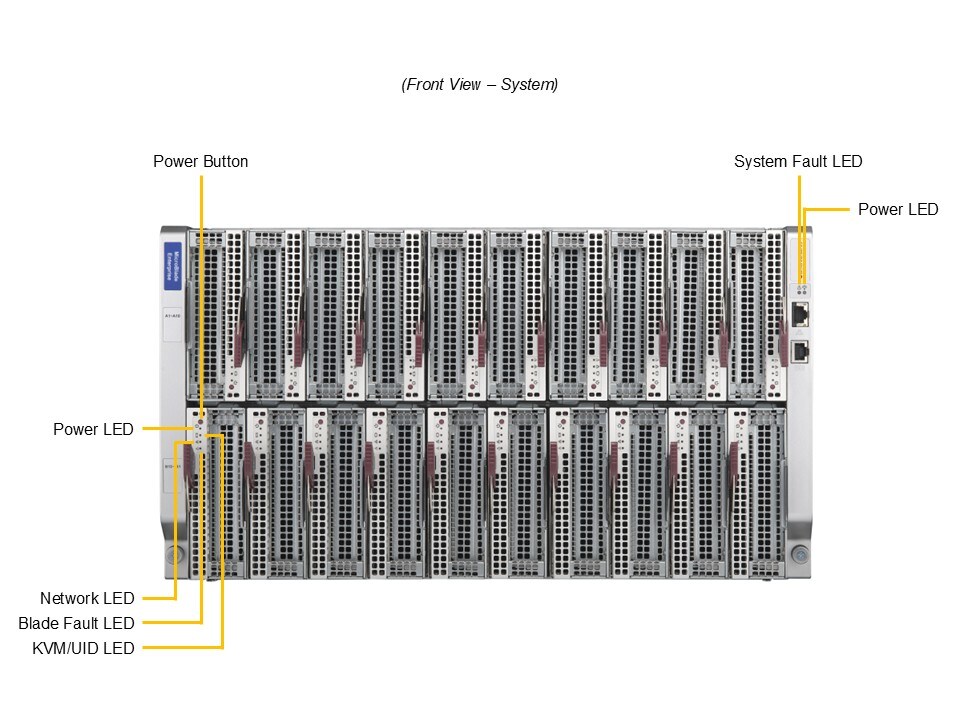

Views: | Angled View | Rear View | Front View |

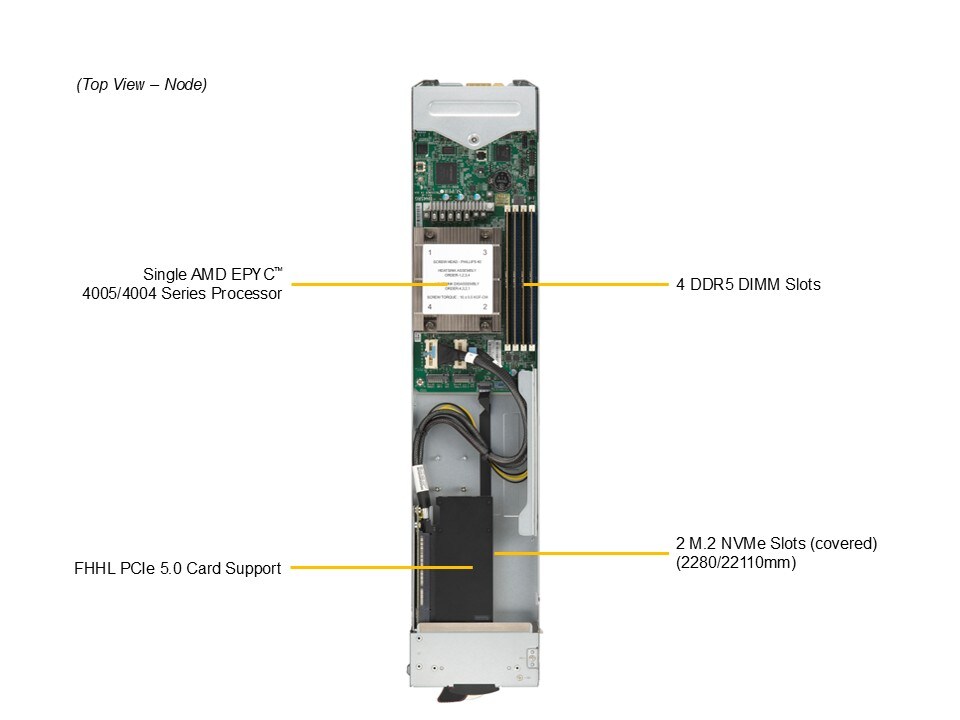

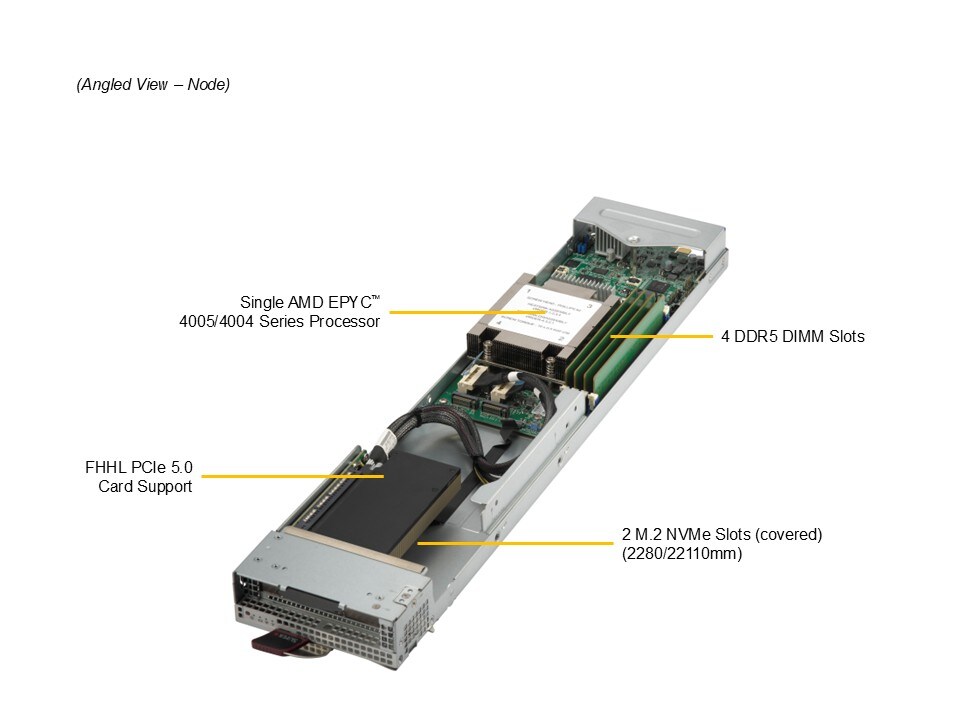

| Angled Node View | Top Node View |

Key Applications
  - Cloud Computing
  - AI Inference
  - VDI, Video Streaming, Web Cache, CDN
  - Web Hosting, Dedicated Hosting
  - Online Gaming
  - E-commerce

Key Features
1. Up to 160 servers and 16 Ethernet switches per 48U rack
2. Up to 170W CPU with air cooling
3. Up to 1 PCIe 5.0 x16 single-wide, FHHL GPU or network card
4. Up to 4 NVMe SSDs
5. Dual port 10GbE NIC included on the motherboard
6. No cable between each server and two integrated Ethernet switches

Note: Complete system should include at least
1 CPU, 1 DIMM, & 1 HDD/SSD.

Drivers & Utilities BIOS / IPMI Tested Memory
Tested M.2 List Download Driver CD


Product SKUs
MicroBlade Sled
  • MBA-315R-1G
Motherboard
Processor
CPU
  • Single Socket AM5 (LGA-1718)
  • AMD EPYC™ 4005/4004 Series Processor
Core Count
  • Up to 16C/32T; Up to 128MB Cache
Note
  • Supports 65W - 170W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 1 FHHL PCIe GPU
System Memory
Memory Capacity
  • 4 DIMM slots
  • Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
  • Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • AMD B650
SAS
  • Provided via SAS3 (Broadcom 3108) backplane
Network Controllers
  • Dual 25G onboard via Mellanox CX4
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Graphics
  • Aspeed AST2500 BMC
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Dimensions
Height
  • 1.2" (30.48mm)
Width
  • 4.94" (125.48mm)
Depth
  • 23.2" (589.28mm)
Weight
  • Gross Weight: 3.3 lbs (1.5 kg)
Available Colors
  • Silver Grey
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Fault LED
  • Network Activity LED
  • UID / KVM LED
Drive Bays / Storage
M.2
  • 2 M.2 NVMe SSD slots
U.2
  • 2 optional U.2 NVMe drive bays
Input / Output
TPM
  • 1 TPM Header
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
United States / Canada
  • FCC- Emissions (US) Verification
Europe
  • N55022 - Emissions
  • EN55024 - Immunity
  • EN61000-3-2 - Harmonics
  • EN61000-3-3 - Voltage Flicker
  • CE - EMC Directive 89/336/EEC

Optional Parts List
Part Number Qty Description
Heat Sink SNK-P0076V - 1U AM5 CPU Heat Sink
TPM security module
(optional, not included)		 AOM-TPM-9665V
AOM-TPM-9655V 		- TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
Networking AOC-A25G-B2SB-P
AOC-ATG-I2TB-P 		- AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with bracket for Blade,RoHS
AIOM 2-port 10GBase-T, Intel X550 with bracket for Blade,RoHS
Software SFT-DCMS-Single - DataCenter Management Package (per node license)
