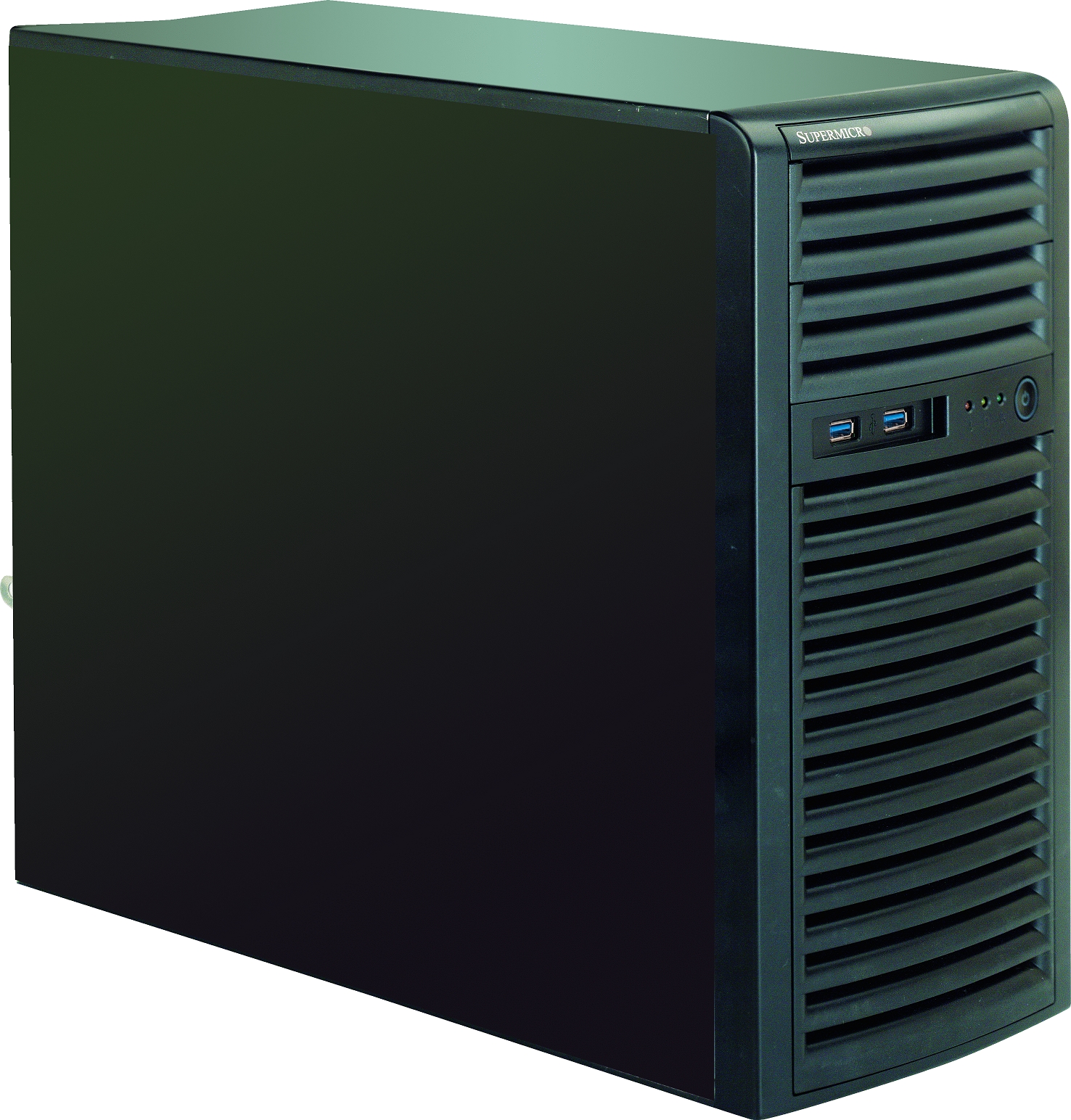

スーパーシャーシ 732I-668B

Key Features


  1. 90° Rotatable HDD Cage
  2. Whisper-Quiet (<21dB)
  3. Kensington Lock Security
  4. Front I/O Ports: 2x USB 3.0
  5. 1x Optional Front 12cm (1850 RPM) PWM Fan
  6. Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes – E-ATX/ATX/Micro ATX
  7. 668W Platinum Level Certified High-Efficiency Power Supply
  8. 1x Rear 12cm (1850 RPM) PWM Fan
  9. 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
Specifications Resources Parts List
Specifications
Product SKUs
CSE-732I-668B
Form Factor
  • Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 16.7" (424 mm)
Width
  • 7.6" (193 mm)
Depth
  • 20.68" (525 mm)
Gross Weight
  • 30 lbs (13.61 kg)
Net Weight
  • 28 lbs (12.7 kg)
Packaging (W x H x L)
  • 21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)
Available Color
  • Black
Expansion Slots
  • 7x Full-height, Full-length expansion slot(s)
Drive Bays
  • Optional 4x 2.5" fixed drive bay
  • 4x 3.5" fixed drive bay
Peripheral Drives
  • 2x standard 5.25" drive bay
  • 1x 3.5" internal fixed drive bay
Front Panel
Button
  • Power On/Off button
LED
  • Power status LED
  • HDD activity LED
  • 1 Network activity LEDs
  • System Overheat LED
Port
  • 2x USB 3.0 Port(s)
Systems Cooling
Fans
  • Optional 1x 12cm (front) cooling fan
  • 1x 12cm rear exhaust fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
PS2 668W Multi-output power supply 80PLUS Platinum
Power Efficiency
  • 92%
Total Output Power and Input
  • 668W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 185 x 150 x 86 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.1A / Min: 0A
+12V
  • Max: 54A / Min: 0.2A (100Vac - 240Vac)
+5V
  • Max: 20A / Min: 0.1A
+3.3V
  • Max: 15A / Min: 0.1A
+5Vsb
  • Max: 2A / Min: 0A
Certification
  • プラチナ認定  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Resources
Motherboard (for CSE-732I-668B)
Motherboard Name
X12DPL-NT6X12DPL-i6X10SDV-4C+-TP4FX10SDV-12C+-TP8F
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
