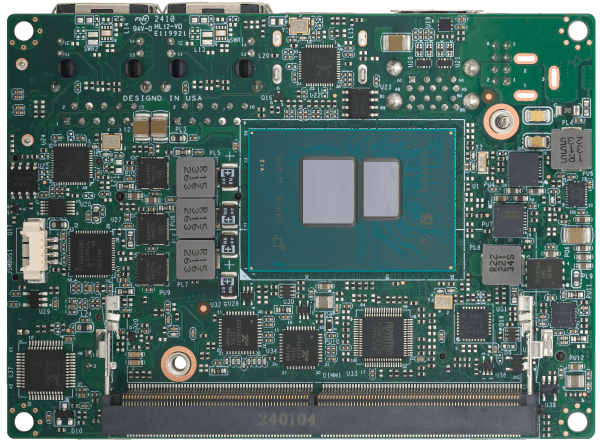

A4SAP-L

A4SAP-L
Low Power
Embedded

Key Features


  1. Intel® processor N97 (12W, 4C)
  2. 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe
  3. Extension I/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA, SMBus, Power)
  4. 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
  5. Supports 12V DC power input
  6. Wide temperature suppot from -30°C to 75°C
  7. 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-A4SAP-L
Physical Stats
Form Factor
  • Pico-ITX
Dimension
  • 4" x 2.83" (10.16cm x 7.19cm)
Processor
CPU
  • Intel®  Processor  N97
  • Single Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP
Core
  • Up to 4 cores / 6MB Cache
System Memory
Memory Capacity
  • 1 DIMM slots
  • Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MHz
Memory Type
  • 4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB
DIMM Sizes
  • 8GB, 16GB
  • SODIMM: 8GB, 16GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 1 SATA3 (6 Gbps) ports
Audio
  • ALC 888S HD Audio
Network Controllers
  • N/A
Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 2 LAN
USB
  • 2 USB 3.2 Gen2 port(s) (2 rear)
  • 2 USB 2 port(s) (2 Others)
Video Output
  • 1 HDMI port(s), 1 48-bit LVDS port(s)
Others
  • 1 8-bit GPIO header
  • 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C)
  • 1 SMbus and 5V/A SATA Power bo header
  • 1 SMBus
Expansion Slots
PCIe
  • N/A
M.2
  • M.2 Interface: 1 PCIe3.0 x1/USB2; 1 PCIe3.0 x1/SATA3.0 x1/USB3/USB2
  • Form Factor: 2230, 2242
  • Key: E-Key, B-Key
System BIOS
BIOS Type
  • 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.3
  • UEFI 2.7
  • PCI FW3.0
  • RTC (Real Time Clock) Wakeup
PC Health Monitoring
Voltage
  • VBAT, System temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, Vcore, VDD2 (VDIMM)
Temperature
  • CPU thermal trip support
Other Features
  • WOL
  • RoHS
  • Control of power-on for recovery from AC power loss
  • ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Component Options
Tested AOC List
Tested HDD / SSD List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
A4SAP-L Coming Soon

Certain products may not be available in your region
