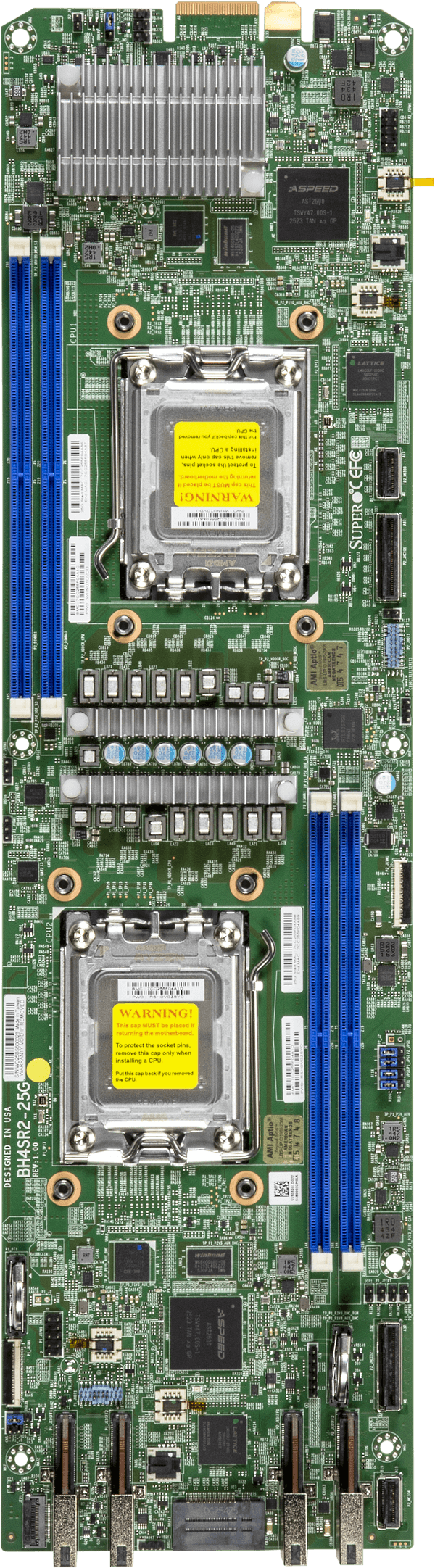

BH4SR2-25G (SuperServer 専用)

BH4SR2-25G
H13 UP MicroBlade Server Board

Key Features


  1. AMD EPYC™ 4005/4004 series processors, Dual nodes with LGA-1718 (Socket AM5), APU TDP supports up to 110W TDP per node
  2. Up to 128GB ECC/non-ECC unbuffered DIMM, DDR5-5600MHz, in 2 DIMM slots per node
  3. 2x E1.S connectors and 1x M.2 slots for 22110/2280 M.2 drives per node
  4. Onboard Broadcom BCM57414 Dual-Port 25GbE Base-KR PCIe 3.0 x8 to back panel
...
...
Specifications Resources
Specifications
Product SKUs
MBD-BH4SR2-25G
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.8" x 18.4" (12.2cm x 46.7cm)
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 4004 / 4005
Core Count
  • Up to 16C/32T
Note
  • Supports up to 110W TDP CPUs
System Memory
Memory
  • Slot Count: 4 DIMM Slots/2 Channels
  • Max Memory (1DPC): Up to 128GB 5600MT/s ECC/non-ECC DDR5 UDIMM
DIMM Sizes
  • UDIMM:16GB, 32GB
Memory Voltage
  • 1.1V
Error Detection
  • Detects double-bit errors (using ECC memory)
On-Board Devices
IPMI
  • ASPEED AST2600 BMC
Network Controller
  • Dual LAN with Broadcom BCM57414 Dual-Port 25GbE Base-KR PCIe 3.0 x8, to back panel
Input / Output
TPM
  • 1 TPM Onboard TPM & TPM Header
Expansion Slots
PCI-Express (PCIe) Configuration
  • 4 PCIe 5.0 x8 via E1.S Connector slots
M2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,VBAT
LED
  • CPU/system overheat LED
  • LAN activity LED
  • Power LED
  • UID/remote UID LED
Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
FAN
  • Fan speed control
Other Features
  • ACPI power management
  • Control of power-on for recovery from AC power loss
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F )
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
