C9Q870-M

C9Q870-M

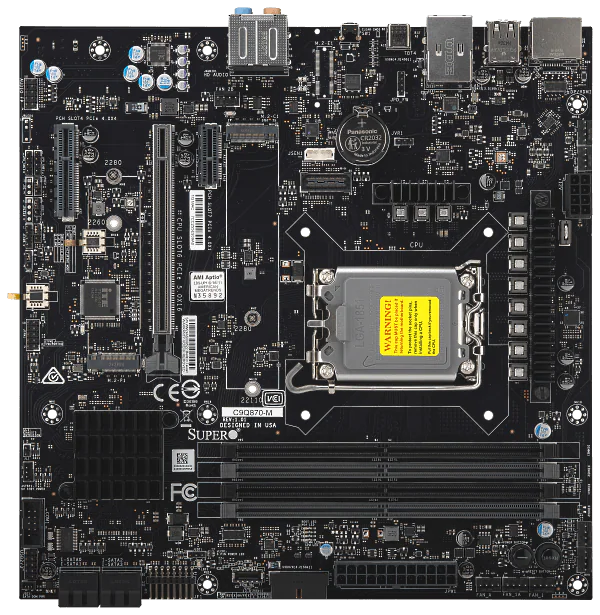

C9 UP Desktop/Gaming Board
SuperO

Key Features


  1. Intel® Core™ Ultra 9/7/5 and Core™ Ultra 7/5 Plus Processors, LGA 1851 (Intel® V1 Socket), TDP up to 125W
  2. Intel® Q870
  3. Up to 256GB non-ECC UDIMM4 DDR5 5600MT/s
  4. 1 PCIe 5.0 x16 Slot1 PCIe 4.0 x4 Slot 1 PCIe 4.0 x1 Slot
  5. M.2 Interface: 1 PCIe 5.0 x4; 1 PCIe 4.0 x4, RAID 0 &1M.2 Form Factor: 2280/22110M.2 Key: M-Key
  6. Single LAN with Intel® Ethernet I219-LMSupports Intel® vPro
  7. 1 HDMI 2.1*, 1 DP 2.1**, 1 Thunderbolt™ 4.0 Type-C® *Supports data rates of up to 8Gbps (8K@60Hz) **Supports data rates of up to 10 Gbps
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-C9Q870-M
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • Single V1 (LGA-1851)
  • Intel® Core™ Ultra 9/7/5 and Core™ Ultra 7/5 Plus Processors
Core Count
  • Up to 24C/24T
Note
  • Supports up to 125W TDP CPUs
System Memory
Memory
  • Slot Count: 4 DIMM Slots
  • Max Memory (1DPC): Up to 256GB 5600MT/s non-ECC DDR5 UDIMM
DIMM Sizes
  • UDIMM:8GB, 16GB, 24GB, 32GB, 48GB, 64GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® Q870
SATA
  • 4 SATA (6Gbps) via Intel® Q870; RAID 0/1/5/10 support
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port(s) (1Gb Intel® Ethernet PHY I219-V)
USB
  • 2 USB 2.0 port(s) (header)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen 1 port(s) (Header)
  • 2 USB 3.2 Gen 1 Type-A port(s) (Rear)
  • 1 USB 3.2 Gen 2x2 Type-C port(s) (Header)
  • 1 USB 4.0 Type-C port(s) (Rear)
Video
  • 1 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4) port(s)
  • 1 Display Port port(s)
  • 1 HDMI 2.1 (8K@60MHz) port(s)
Serial
  • 1 COM port(s) (header)
Audio
  • ALC 888S HD Audio
TPM
  • 1 TPM 2.0 Header
Expansion Slots
PCI-Express (PCIe) Configuration
  • 1 PCIe 4.0 x4 slot
  • 1 PCIe 5.0 x16 (in x16) slot
  • 1 PCIe 4.0 x1 slot
M2
  • 1 M.2 PCIe 4.0 x4 slot (M-key 2260/2280; RAID 0/1)
  • 1 M.2 PCIe 5.0 x4 slot (M-key 2280/22110; RAID 0/1)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • SMBIOS 3.0 or later
  • BIOS rescue hot keys
  • Riser card auto-detection support
Management
Software
Power Configurations
  • ACPI Power Management
PC Health Monitoring
Voltage
  • +1.8V CPU,+12V,+3.3V,+5V,1.05 (PCH),3.3V standby,CPU temperature,CPU thermal trip support,PCH temperature,System temperature,VBAT
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • 5 fans with tachometer status monitoring
  • Fan speed control
  • Overheat LED indication
Other Features
  • 8-pin 12v DC power connector
  • ACPI power management
  • ATX power connector
  • Chassis intrusion header
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
  • RoHS
  • Voltage and frequency overclocking
  • WOL
Resources
Component Options
テスト済みAOCリスト
テスト済みHDD / SSD リスト
テスト済みM.2リスト
テスト済みメモリー リスト
Software
ドライバーCDをダウンロード
最新のドライバーとユーティリティをダウンロードしてください
OS互換性
SuperO Booster Utility
BIOSをアップデートする
Documentation
マザーボードマニュアル
クイックリファレンスガイド
Parts List
Standard Parts (Bulk Package)
Part Number Qty Description
I/O Shield MCP-260-00193-0B 1 I/O Shield
SATA Cables CBL-0044L • 2 SATA Cables
Standard Parts (Retail Package)
Part Number Qty Description
I/O Shield MCP-260-00193-0B 1 I/O Shield
Quick Reference Guide MNL-2707-QRG 1 Quick Reference Guide
S-Connector JMP-0010L-0000-PRX 1 S-connector (Front Control Panel Connector/Adapter)
SATA Cables CBL-0044L • 4 SATA Cables
