Intel® Xeon® 600 Processor for Workstation, Single Socket E2 (LGA 4710-2), Up to 86 Cores, Up to 350W TDP
Intel® W890
Up to 1TB of DDR5 ECC RDIMM, 6400 MT/s (1DPC) or 5200 MT/s (2DPC)
Up to 2TB DDR5 ECC 3DS RDIMM, 6400 MT/s (1DPC) or 5200 MT/s (2DPC)
Up to 256GB of DDR5 ECC MRDIMM, 8000MT/s (1DPC)
1 MCIO Connector to Support 2 U.2 Ports (PCIe 5.0 x4 from CPU) via cable for NVMe 2.5" SSD drives, Intel® Virtual RAID (VROC) 0 &1 (VROC Key Is Required)
1 1Gb Intel® I210AT LAN Port, IPMI share LAN
1 1Gb Intel® I219LM LAN Port, Intel® VPro® Feature
1 on board TPM2.0 (can not support TPM 1.2)
2 PCIe 5.0 x16 Slots with Metal Armor Protection
2 PCIe 5.0 x8 Slots, Open Rear
2 M.2 Slots (2 PCIe 5.0 x4 from CPU; Support 2280/22110), M-Key
...
...
SpecificationsResourcesParts List
Specifications
Product SKUs

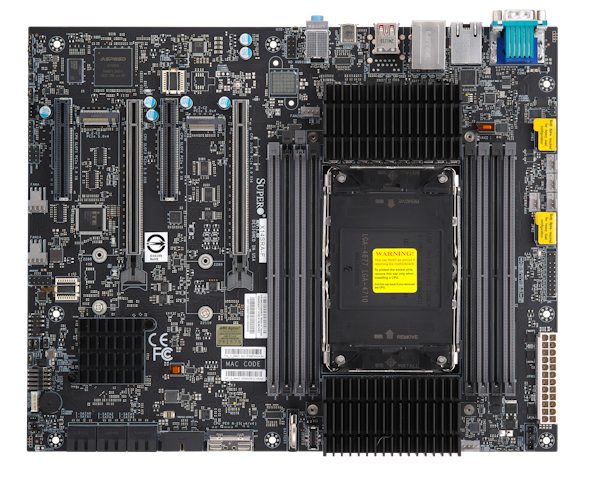

MBD-X14SRA-F
Physical Stats
Form Factor
ATX
Dimension
12" x 9.6" (30.48cm x 24.384cm)
Processor
CPU
System Memory
Memory Capacity
8 DIMM slots
Memory Type
5200 MT/s
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel® W890
SATA
6 SATA ports; RAID 0/1/5/10
IPMI
ASPEED AST2600 BMC
Network Controllers
Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
Single LAN with Intel® Ethernet Controller I210-AT
SPI capable TPM 2.0 with Infineon 9672 controller with horizontal form factor SPI capable TPM 2.0 with Infineon 9672 controller with vertical form factor; The Length of PCIe Half Height/LowProfile PCI Card on Slot#1 Can't Over 140mm When Using AMO-TPM-9672V
