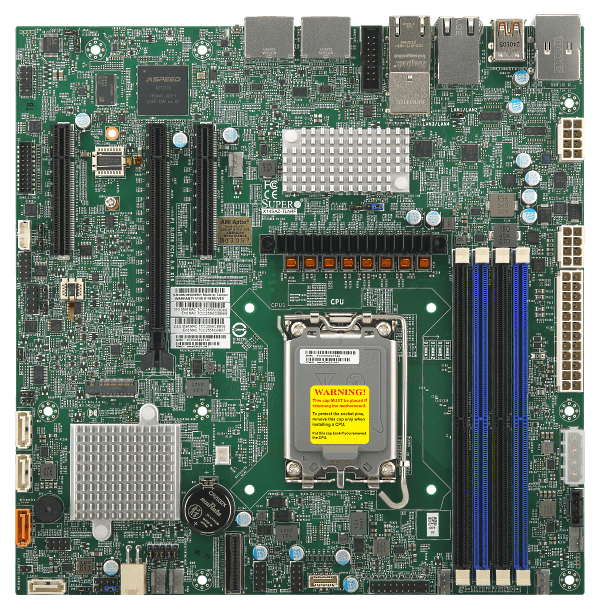

X14SAZ-TLN4F

X14SAZ-TLN4F
Micro-ATX Embedded Motherboard
Intel® Core® Ultra 9/7/5 Series 2 Processors

Key Features


  1. Intel Core Ultra 9/7/5 Series 2 Processor, CPU TDP supports Up to 125W TDP
  2. Intel® W880
  3. Up to 192GB Unbuffered ECC/non-ECC UDIMM/CUDIMM, DDR5-5600MHz, in 4 DIMM slots
  4. 1 PCIe 5.0 x16 slot,
    2 PCIe 4.0 x4 slots,
    2 PCIe 4.0 x4 MCIO port
    M.2 Interface: 1 PCIe 5.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  5. Dual 10 Gigabit LAN with Intel® Ethernet X550-AT2 LAN controller
  6. Dual 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller [AMT/vPro]
  7. 4 Independent Displays (1 VGA port, 2 DP++ ports, 2 HDMI 2.1 port)
  8. Intel® W880 Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  9. Supports 12V DC power input
  10. Onboard TPM2.0
...
...

Optimized Servers


SYS-512AR-N4T
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X14SAZ-TLN4F
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • Single Socket V1 (LGA-1851)
  • Intel® Core® Ultra 9/7/5 Series 2 Processors
Core Count
  • Up to 24C
Note
  • Supports up to 125W TDP CPUs
System Memory
Memory
  • Slot Count: 4 DIMM Slots
  • Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
  • Max Memory (2DPC): Up to 192GB 4400MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel W880
Network Controller
  • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
  • Dual LAN with Intel® I226LM Ethernet Controller
Input / Output
USB
  • 4 USB 3.2 Gen2 Type-A port(s) (Rear)
  • 2 USB 3.2 Gen2 port(s) (Header)
  • 4 USB 2 port(s) (Header)
Video
  • 2 HDMI port(s)
  • 1 VGA port(s)
  • 2 Display Port Video port(s)
Serial
  • 2 COM port(s) (Header)
Audio
  • ALC 888S HD Audio
  • Rear Audio
TPM
  • 1 TPM 2.0 onboard
  • 1 TPM Header
Expansion Slots
PCI-Express (PCIe) Configuration
  • 1 PCIe 5.0 x16 slot
  • 2 PCIe 4.0 x4 slots
M2
  • 1 M.2 PCIe 5.0 x4 slot (M-Key 2280/22110)
System BIOS
BIOS Type
  • AMI 32MB UEFI
BIOS Features
  • ACPI 6.5; SMBIOS 3.7 or later; UEFI 2.9
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +1.35V,+1.5V,+1.8V,+12V,+3.3V,+5V,+5V standby,1.05 (PCH),6 fans with tachometer status monitoring,BMC/IPMI Heartbeat LED,Chipset voltage,CPU temperature,Dual cooling zones,Memory temperature,UID,VBAT
LED
  • Power LED
Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
FAN
  • 6x 4-pin fan headers (up to 6 fans)
Other Features
  • 12V DC or ATX Power Source
  • ACPI power management
  • ATX power connector
  • Chassis intrusion detection
  • M.2 NGFF connector
  • RoHS
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C to 60°C (32°F to 140°F )
  • Non-operating Temperature: -40°C to 85°C (-40°F to 85°F)
  • Operating Relative Humidity: 10% to 85% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources
Servers (Optimized for X14SAZ-TLN4F)
SYS-512AR-N4T
...
Chassis
Heatsink:SNK-P0092AP4
SC732D3-903B
(Heatsink1 :SNK-P0086AP4 )
SC732D4-903B
(Heatsink1 :SNK-P0086AP4 )
...
  1. = Optimized SuperServer Chassis
  2. = Optimized Global Chassis
  3. Blue color = Compatible Chassis
  4. = Compatible Global Chassis
Component Options
Tested AOC List
Tested HDD / SSD List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
Standard Parts (Bulk Package)
Part Number Qty Description
I/O Shield MCP-260-00194-0N 1 Standard I/O Shield for X14SAZ with EMI Gasket
SATA Cables CBL-0044L • 2 57.5 cm SATA FLAT S-S PBF
Standard Parts (Retail Package)
Part Number Qty Description
1U I/O Shield MCP-260-00194-0N 1 Standard I/O Shield for X14SAZ with EMI Gasket
QRG MNL-2741-QRG 1 Motherboard Quick Reference Guide
SATA cable CBL-0044L • 4 57.5 cm SATA FLAT S-S PBF
Optional Parts
Part Number Qty Description
Active Heatsink SNK-P0086AP4 1 4Utower Heatsink
I/O Cables CBL-CDAT-0604 1 40CMDual Serial Port Cable with bracket
CBL-CDAT-0850 1 VGA cable from pin header
CBL-MCIO-1245U2Y-E • 1 MCIO x8 to 2x SFF-8639/U.2+Pwr,45cm,G5,RoHS
CBL-OTHR-0985 1 Audio Cable_x000D_
Riser card RSC-S-6G5 1 1ULHS Standard Riser card with one PCIe 5.0 X16 slot.,H
