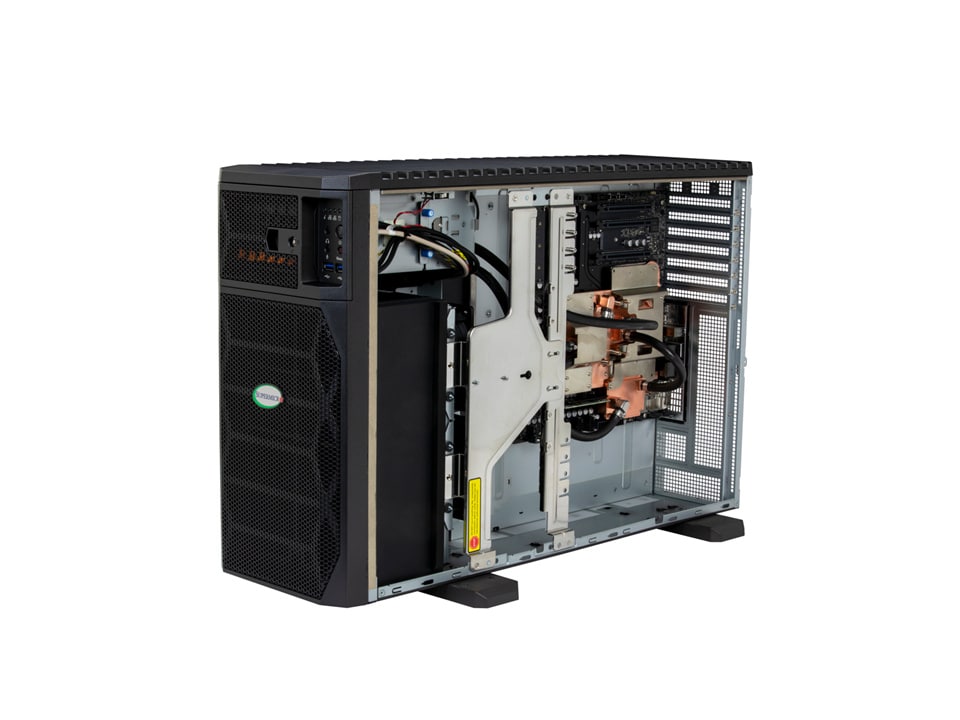

SuperServer ARS-511GD-NB-LCC

Super AI Station

Key Applications

  • Big Data / Big Science
  • Research Lab/National Lab
  • AI Inference / Training
  • AI Development

Key Features

  1. NVIDIA Grace™ CPU Superchip, 72 Core
  2. NVIDIA Blackwell B300 GPU, up to 279GB HBM3e (Onboard)
  3. 4x 128GB LPDDR5x SOCAMM (Total 496GB total memory per NVIDIA Grace™ CPU)
    Up to 775GB of coherent memory
  4. NVIDIA ConnectX®-8 SuperNIC™
  5. Up to 20 PFLOPS of AI Performance
    Closed looped liquid cooling
    NVIDIA DGX™ OS
...
...
ARS-511GD-NB-LCC
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
ARS-511GD-NB-LCC
Motherboard
Super GPU-NVGB300-WSHPM
Processor
CPU
  • Single processor(s)
  • NVIDIA 72-core NVIDIA Grace CPU on NVIDIA GB300 Grace Blackwell Ultra Superchip
Note
  • Supports up to 300W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • 1 onboard GPU
Supported GPU
CPU-GPU Interconnect
  • NVIDIA NVLink™-C2C
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 496GB ECC LPDDR5X
On-Board Devices
Chipset
  • NVIDIA C1
Network Connectivity

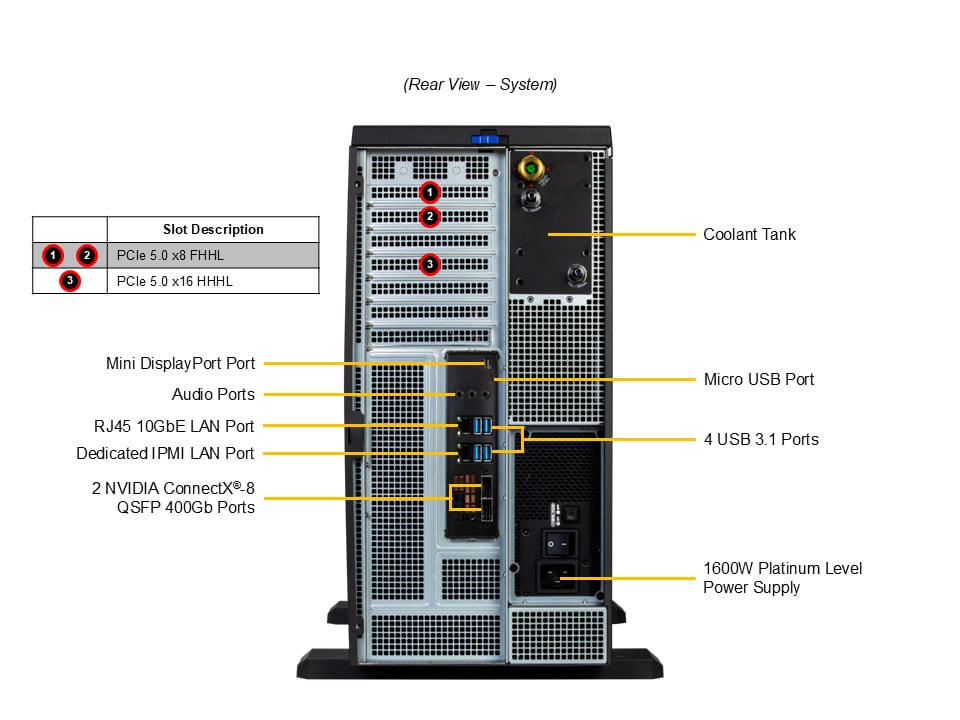

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 1 RJ45 10 GbE LAN port
  • 2 QSFP28 400 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC)
USB
  • 2 USB 2.0 Type-A ports(front)
  • 4 USB 3.0 Gen2 Type-A ports(Rear)
Video
  • 1 mini-DP port
Audio
  • Rear Audio
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • ATX Power connector
Security
Hardware
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

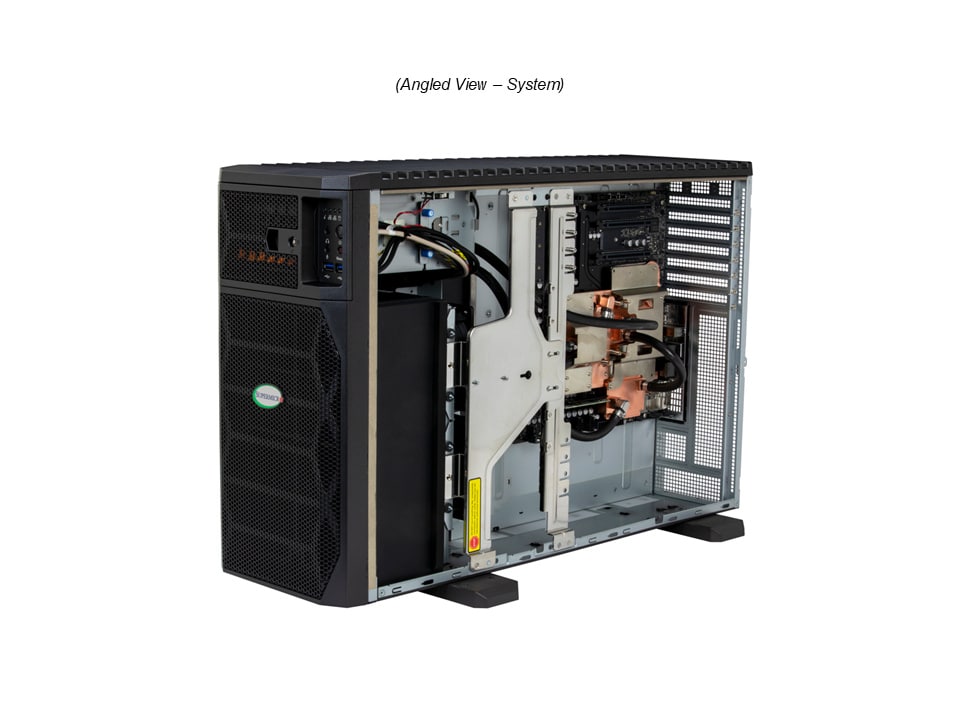

Chassis
Form Factor
  • Tower or 5U
Model
  • CSE-759TS-R0CNBP
Dimensions and Weight
Height
  • 8.6" (218.4 mm)
Width
  • 17.9" (454.7 mm)
Depth
  • 27.6" (701 mm)
Package
  • 25.8" (H) x 15.3" (W) x 37.6" (D)
Weight
  • Gross Weight: 112.4 lbs (51 kg)
  • Net Weight: 88 lbs (40 kg)
Available Color
  • Black Front & Black Body

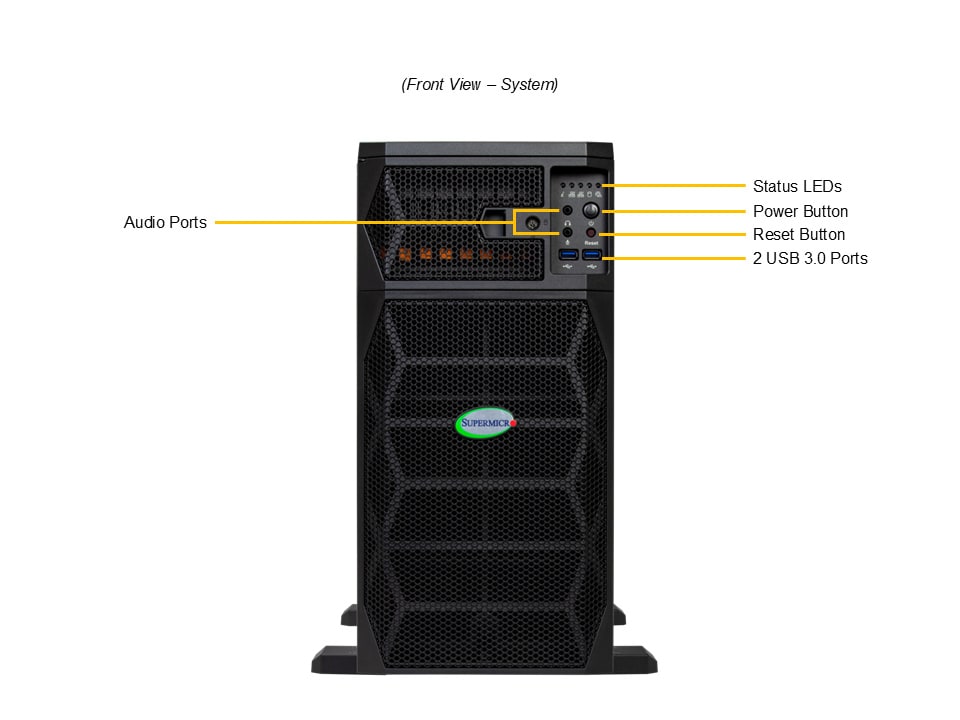

Front Panel
LED
  • HDD activity LED
  • Power status LED
Buttons
  • Power On/Off button
  • Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 1 M.2 PCIe 5.0 x4 slot (E-key 2230(default))
Drive Bays / Storage
M.2
  • 4 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default))
System Cooling
Fans
  • 2x 120mm Fan(s)
  • 1x 80mm Fan(s)

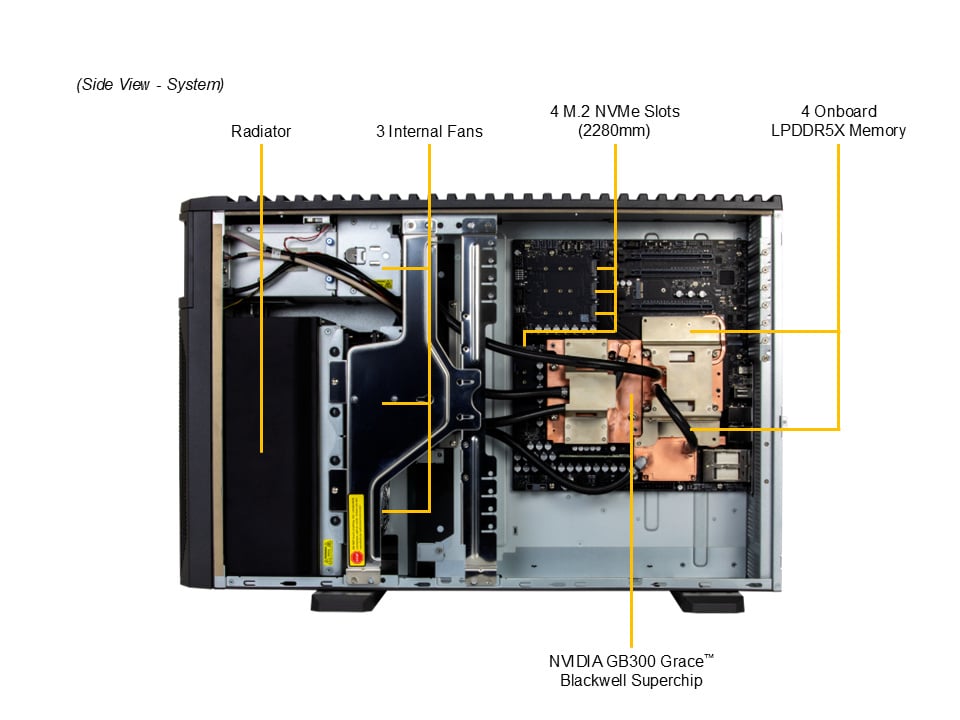

Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
1x 1600W
1x 1600W Titanium Level (94%) power supply
Dimension (WxHxL)150 x 86 x 210 mm
Input1300W: 100-114Vac / 50-60Hz
1600W: 115-240Vac / 50-60Hz
+12VMax: 108.3A / Min: 0.1A (100Vac-114Vac)
Max: 133.3A / Min: 0.1A (115Vac-240Vac)
5V SBMax: 3A / Min: 0A
Output Type24pin ATX
Certificationチタンレベル94%+  Titanium Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 25°C (50°F to 77°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
