X13SEW-TF-OS1

X13SEW-TF-OS1

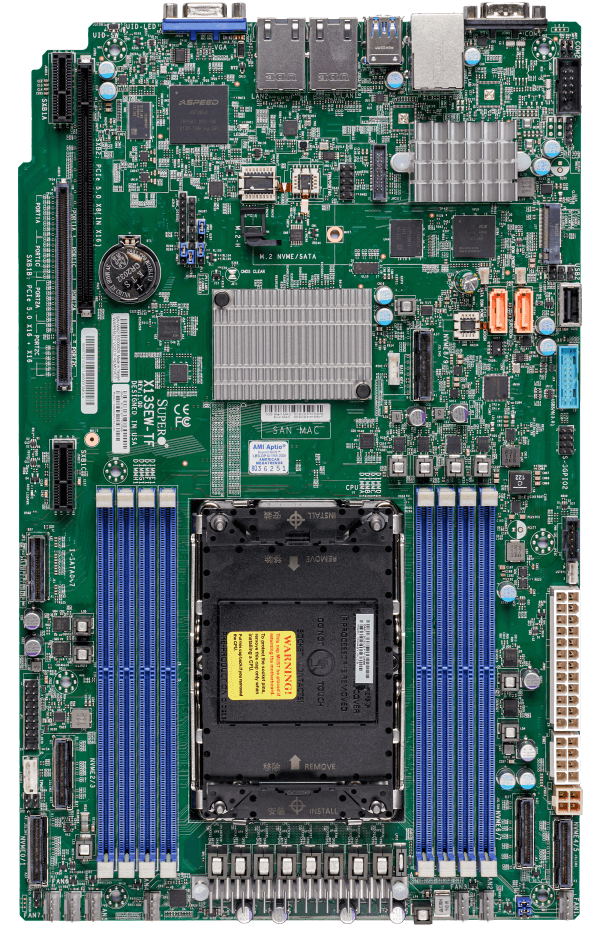

X13 UP WIO Server Board

Key Features


  1. 2 SuperDOM with built-in power
  2. I/O: 1 VGA, 2 COM, 1 TPM header
  3. 4 USB 3.2 Gen1 (2 rear, 2 via header), 3 USB 2.0 (2 rear, 1 via Type-A)
  4. Intel® C741 controller for 10 SATA3 (6 Gbps) ports
  5. 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
  6. Intel C741® Chipset
  7. Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
  8. 10 NVMe ports PCIe 5.0 x8 via 5 MCIO connectors
  9. 1 PCIe 5.0 x8 ( in x16)1 PCIe 5.0 x32 M.2 Interface: 1 PCIe 3.0 x2 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
  10. Dual LAN with 10GBase-T with Intel® X550
...
...
Specifications Resources Parts List
Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X13SEW-TF-OS1
Physical Stats
Form Factor
  • Proprietary WIO
Dimension
  • 8" x 13" (20.32cm x 33.02cm)
Processor
CPU
Core
  • Up to 64 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 10 SATA ports; RAID 0/1/5/10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550
Input / Output
LAN
  • 2 RJ45
  • 1 RJ45
Serial Port
  • 1 COM
  • 1 COM
DOM
  • 2 SATA ドム (Disk on Module) portwith power connector support
Expansion Slots
PCIe
  • 1 PCIe 5.0 x8 Right Riser (in x16) slot,
  • 1 PCIe 5.0 x32 Left Riser Slot,
  • 5 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2
  • M.2 Interface: 1 PCIe 3.0
  • Form Factor: 2280/22110
  • Key: M-key
System BIOS
BIOS Type
  • AMIUEFI
  • AMIUEFI
  • AMIUEFI
BIOS Features
  • UEFI 2.8 or above
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/remote UID LED
  • CPU/system overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal monitor 2 (TM2) support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL, UID, Node manager support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -30°C - 60°C (-22°F - 140°F)
Operating Relative Humidity Range
  • 8% - 80% (non-condensing)
Non Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Publish Status
0
  • Published
Resources
Component Options
CPUリスト
テスト済みAOCリスト
テスト済みHDD / SSDリスト
テスト済みメモリ一覧
Software
BMCファームウェア
ドライバーCDのダウンロード
最新のドライバとユーティリティのダウンロード
OS互換性
BIOSのアップデート
Documentation
マザーボードマニュアル
クイック・リファレンス・ガイド
Parts List

X13SEW-TF-OS1 (For SuperServer Only)
