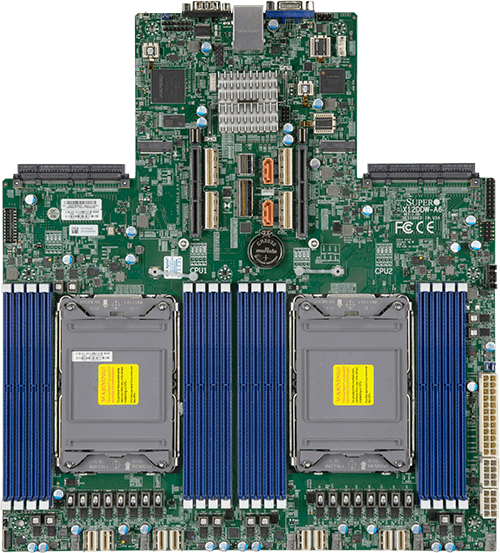

X12DDW-A6

WIO

Key Features

3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Intel® C621A
Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHz
DDR4-3200MHz (OC), in 16 DIMM slots
1 PCIe 4.0 x16 Left Riser Slot,
1 PCIe 4.0 x16 Right Riser Slot,
2 PCIe 4.0 x16 Center Right Hand Slot,
8 PCIe 4.0 NVMe Internal Port(s)
M.2 Interface: 2 PCIe 2.0 x1
M.2 Form Factor: 2260/2280
M.2 Key: M-Key
2 PCIe 4.0 x16, AIOM slots Superset of OCP 3.0 Expansion
Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA D-Sub Connector port
AIOM for LAN

...

...

Optimized Servers

SYS-120C-TN10R SYS-120C-TR SYS-610C-TR SYS-620C-TN12R

Specifications

Product SKUs
MBD-X12DDW-A6

Physical Stats
Form Factor	Proprietary WIO
Dimension	12.288" x 13.404" (31.21cm x 34.05cm)

Processor
CPU	3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core	Up to 40 cores

System Memory
Memory Capacity	16 DIMM slots Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
DIMM Sizes	16GB, 32GB, 64GB, 128GB, 256GB LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C621A
SATA	Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	AIOM for LAN

Input / Output
USB	4 USB 3.1 Gen1 port(s) (2 via header; 2 rear)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 4.0 x16 Left Riser Slot, 1 PCIe 4.0 x16 Right Riser Slot, 2 PCIe 4.0 x16 Center Right Hand Slot, 2 PCIe 4.0 x16, AIOM slots superset of OCP 3.0 expansion
M.2	M.2 Interface: 2 PCIe 3.0 x2 Form Factor: 2260/2280 Key: M-Key

System BIOS
BIOS Type	AMI UEFI

Management
Software	SuperCloud Composer® ( SCC ) 、 Supermicro Server Manager ( SSM ) 、 Supermicro Power Manager (SPM) 、 Supermicro Update Manager ( SUM ) 、 Supermicro SuperDoctor® 5 ( SD5 ) 、 Super Diagnostics Offline ( SDO ) 、 Supermicro Thin-Agent Service ( TAS ) 、 SuperServer Automation Assistant ( SAA ) 新機能! 、サードパーティ製ソフトウェア用プラグイン、 IPMIユーティリティ
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	ATX Power connector

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	PCH temperature, Monitors CPU voltages, CPU temperature, Chassis intrusion header, 6 -fan status, +5V standby, +12V, Memory Voltages, CPU thermal trip support, +1.8V PCH
LED	Power LED BMC/IPMI Heartbeat LED UID/Remote UID
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support
FAN	6 fans with tachometer status monitoring
Other Features	WOL, UID, RoHS, Node manager support, Chassis intrusion detection, ATX power connector, ACPI power management, RoT, NCSI header

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Publish Status
0	Published

Resources

Servers (Optimized for X12DDW-A6)

SYS-120C-TN10R

SYS-120C-TR

SYS-610C-TR

SYS-620C-TN12R

...

Chassis

SCLB16AC10-R860AW
(Heatsink1 :SNK-P0077P )

SCLA15TQC-R860AW
(Heatsink1 :SNK-P0077P )

SCLB13AC2-R860AW
(Heatsink1 :SNK-P0077P )

SCLA26AC12-R1K23AW
(Heatsink1 :SNK-P0078P )

...

= Optimized SuperServer Chassis
= Optimized Global Chassis
Blue color = Compatible Chassis
= Compatible Global Chassis

Component Options

Software

Documentation

Parts List

X12DDW-A6 (For SuperServer Only)
